Festo

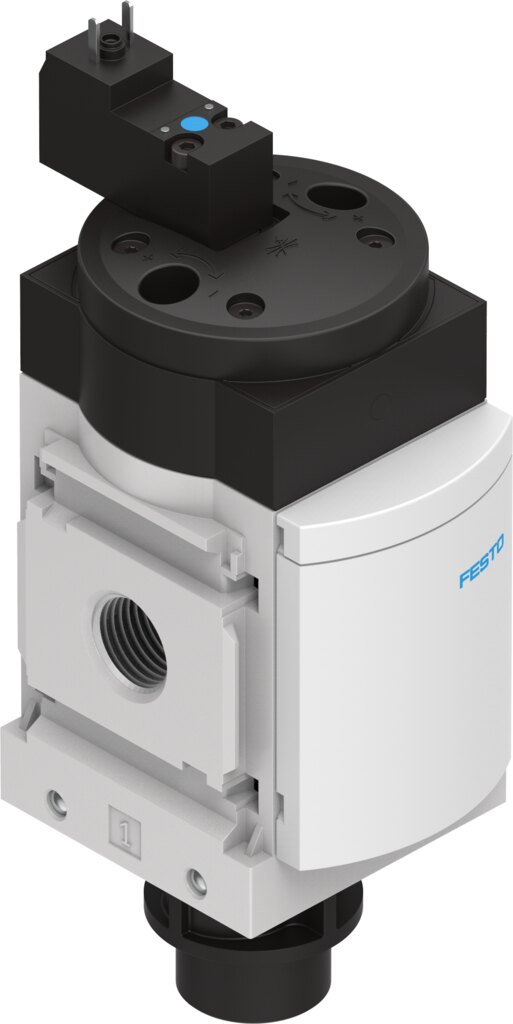

Festo MS6-EE-1/2-10V24 On/off valve
Part number542582EAN / GTIN4052568180638HS code8481.20
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS6-EE-1/2-10V24 — On/off valve, solenoid actuated on/off valves ms-ee. valve function 3/2-way, single solenoid, closed; operating pressure 4. 10 bar.
Technical Specifications
- Manufacturer part number (MPN)
- 542582
- Type code
- MS6-EE-1/2-10V24
- EAN / GTIN
- 4052568180638
- Product category
- Solenoid actuated on/off valves MS-EE
- Design
- Piston gate valve
- Type of actuation
- Electrical
- Exhaust-air function
- Cannot be throttled
- Manual override
- Non-detenting
- Type of reset
- Mechanical spring
- Type of piloting
- Piloted
- Symbol
- 00991008
- Valve function
- 3/2-way, single solenoid, closed
- Operating pressure
- 4 ... 10 bar
- C value
- 29 l/sbar
- b value
- 0.4
- Standard nominal flow rate (standardised to DIN 1343)
- 7000 l/min
- Duty cycle
- 100%
- Characteristic coil data
- 24 V DC: 2.5 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Degree of protection
- IP65
- Ambient temperature
- -10 ... 50 °C
- Suitable for use with food
- See supplementary material information
- Type of mounting
- Either:, Inline installation, with accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 740 g
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Pneumatic connection, port 3
- G1/2
- Pilot air supply
- Internal
- Electrical connection
- Type C, Plug, To DIN EN 175301-803, Square design
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Activation
- El
- Return
- Spring
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 50 °C
- Carbon footprint (EPD)
- 16.6433 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568180638
- MPN 542582
Product Documentation
Document preview: MS6-EE-1/2-10V24 — Festo product documentation
