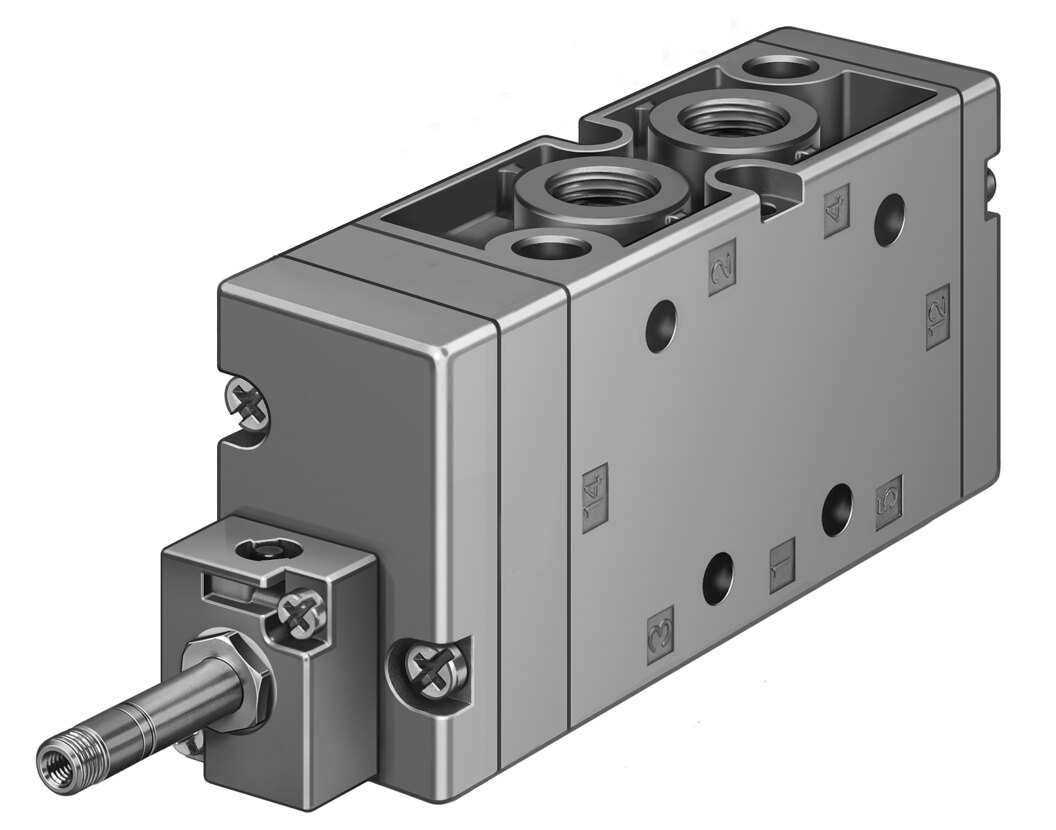

Festo MFH-5-3/8-L-B Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5-3/8-L-B — Solenoid valve, valves and valve terminals. valve function 5/2-way, single solenoid; operating pressure 0.2. 1 MPa (2. 10 bar); nominal size 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 14946
- Type code
- MFH-5-3/8-L-B
- EAN / GTIN
- 4052568002800
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Construction width
- 40 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2000 l/min
- pneumatic working port
- G3/8
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Nominal size
- 12 mm
- Grid dimension
- 41 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991023
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Switching time off
- 50 ms
- Switching time on
- 25 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 630 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail, with through-hole
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 13.0929 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568002800
- MPN 14946
Product Documentation
More from Festo
Festo

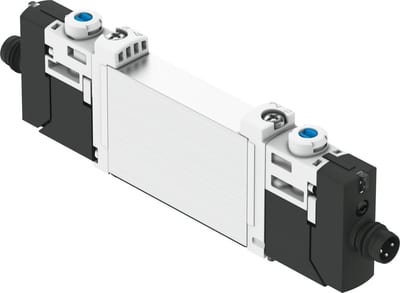

Festo VUVG-B10-T32U-AZT-F-1R8L Solenoid valve
574235
Festo

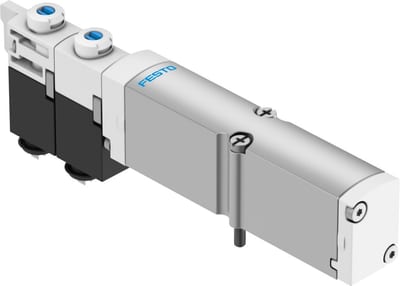

Festo VMPA14-M1H-K-PI Solenoid valve
573724
Festo

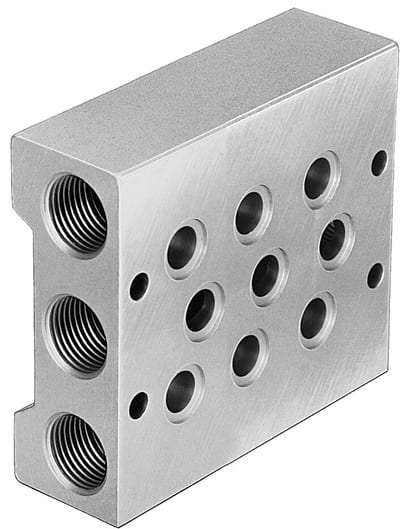

Festo PRS-1/4-3 Manifold block
10186
Festo

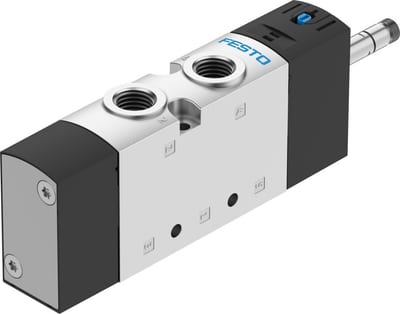

Festo VUVS-L25-M52-AD-G14-F8 Solenoid valve
575501
Festo

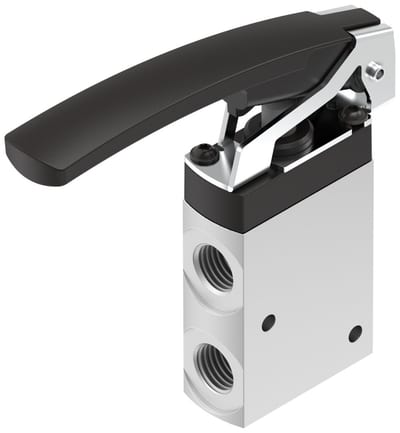

Festo VHEF-LT-M32-M-G14 Finger lever valve
4500008
Festo

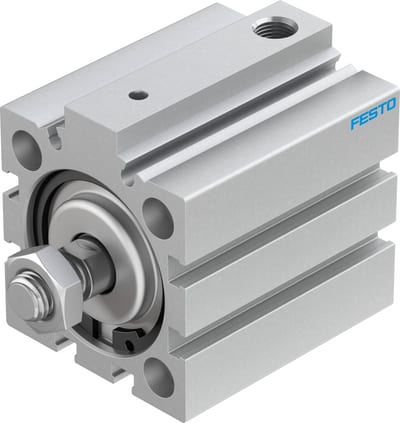

Festo AEVC Short stroke cylinder - 40mm, G1/8, 25mm, AEVC-40-25-A-P-A
188229
Festo

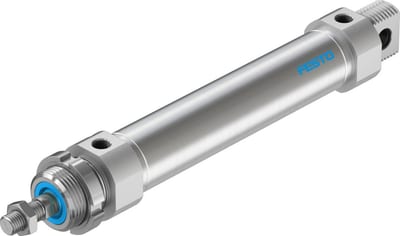

Festo DSNU-32-125-PPV-A Round cylinder
196025
Festo

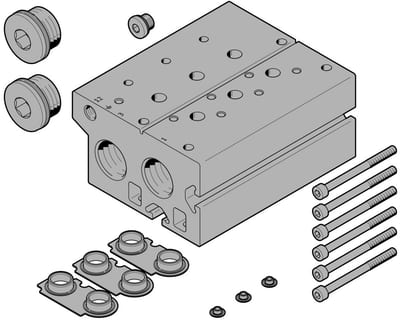

Festo VABM-B10-30E-G34-7-P3 Manifold block
