Festo
Festo LRS-1/8-D-MINI Pressure regulator
Part number194602EAN / GTIN4052568153427HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRS-1/8-D-MINI — Pressure regulator, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 194602
- Type code
- LRS-1/8-D-MINI
- EAN / GTIN
- 4052568153427
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator
- Controller function
- Output pressure constant, with primary pressure compensation, with secondary exhausting
- Symbol
- 00991538
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar; 2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 800 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 500 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Material sub-base
- Die-cast zinc
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/8"
- Press Area
- 0.5 to 12 bar
- Carbon footprint (EPD)
- 3.9535 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568153427
- MPN 194602
Product Documentation
Document preview: LRS-1/8-D-MINI — Festo product documentation
More from Festo
Festo
Festo LR-1/8-D-O-MINI Pressure regulator
162590
Festo
Festo DSNU-50-100-P-A Round cylinder
196004
Festo

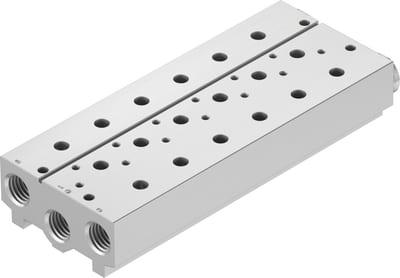

Festo VABM-B10-30S-G12-6 Manifold block
8026381
Festo

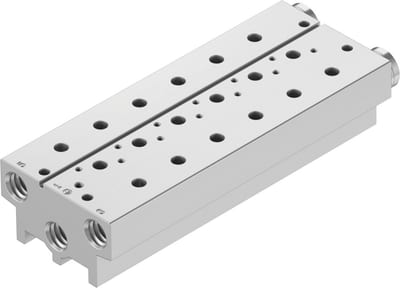

Festo VABM-B10-20S-G14-5 Manifold block
576420
Festo

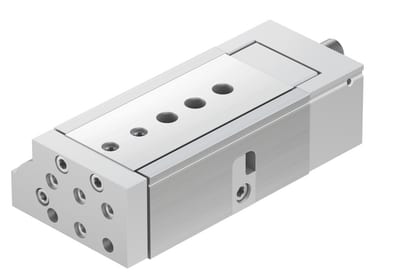

Festo DGSL-20-40-EA Mini slide
570198
Festo

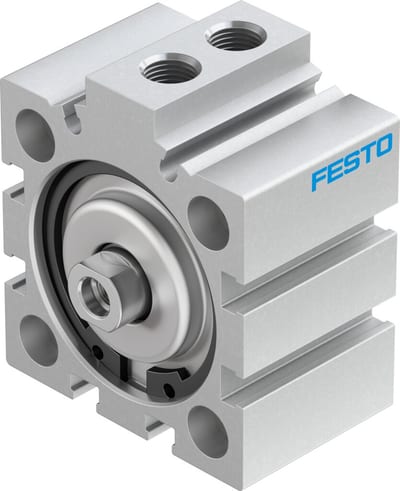

Festo ADVC Short stroke cylinder - 40mm, G1/8, 5mm, ADVC-40-5-I-P
188237
Festo

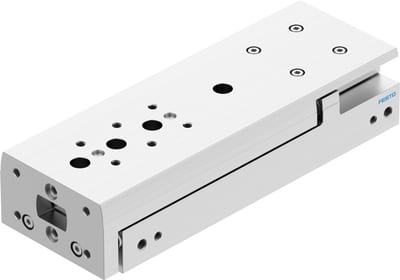

Festo DGST-12-100-E1A Mini slide
8078852
Festo

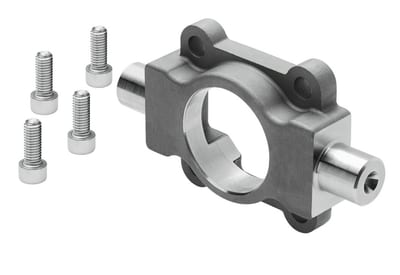

Festo ZNCF-40 Trunnion flange
