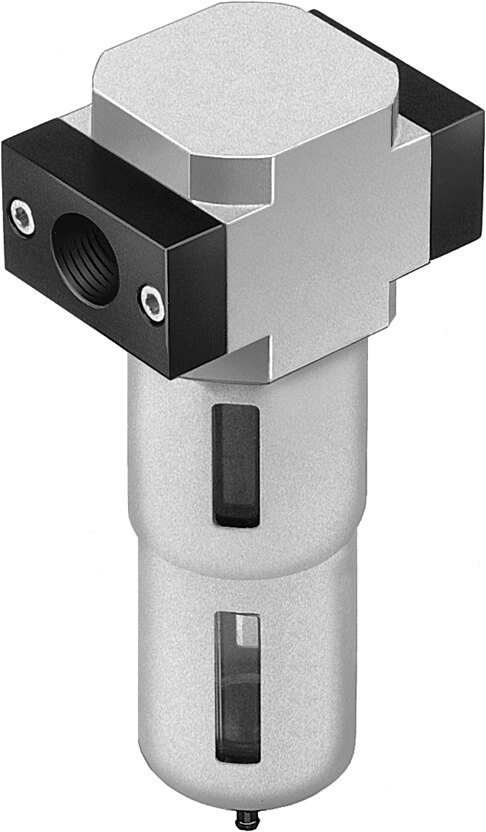

Festo LFX-3/8-D-MIDI Activated carbon filter
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFX-3/8-D-MIDI — Activated carbon filter, compressed air preparation. operating pressure 0. 1.6 MPa (0. 16 bar; 0. 232 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 532782
- Type code
- LFX-3/8-D-MIDI
- EAN / GTIN
- 4052568165482
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Midi
- Series
- D
- Mounting position
- Vertical +/-5°
- Design
- Activated carbon filter, Fibre filter
- Bowl guard
- Metal bowl guard
- Symbol
- 00991519
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar; 0 ... 232 psi)
- Recommended max. nominal flow rate
- 900 l/min
- Max. standard flow rate for clean air class
- 900 l/min
- Operating medium
- Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Air purity class at output
- Compressed air according to ISO 8573-1:2010 [1:4:1], Inert gas
- Media temperature
- 5 ... 30 °C
- Residual oil content
- 0.003 mg/m³
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 816 g
- Type of mounting
- With mounting bracket
- Pneumatic connection
- G3/8
- Pneumatic connection, port 1
- Sub-base, G3/8
- Pneumatic connection, port 2
- Sub-base, G3/8
- Material filter
- Activated carbon, Fabric
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Carbon footprint (EPD)
- 6.2062 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84213925
- HS code
- 8421.39
Standards & Compliance
- HS Code
- 8421.39
Cross References
- EAN 4052568165482
- MPN 532782
Product Documentation
