Festo

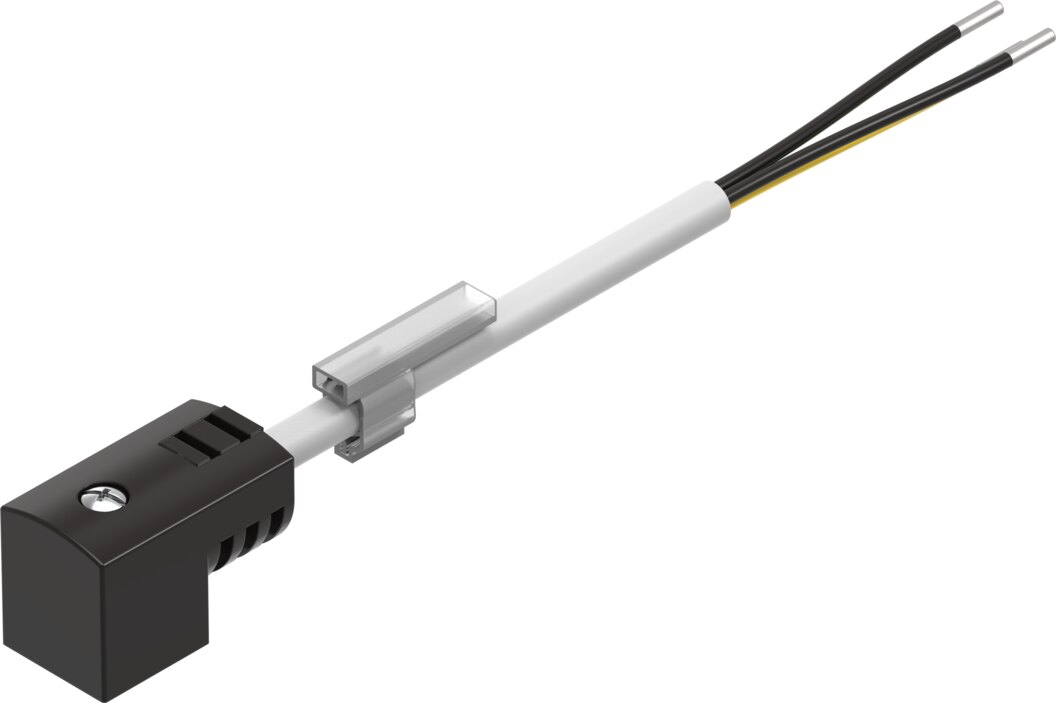

Festo KMEB-1-24-2.5-LED Plug socket with cable
Part number151688EAN / GTIN4052568030742HS code8544.42
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo KMEB-1-24-2.5-LED — Plug socket with cable, connecting cables for valves.
Technical Specifications
- Manufacturer part number (MPN)
- 151688
- Type code
- KMEB-1-24-2.5-LED
- EAN / GTIN
- 4052568030742
- Product category
- Connecting cables for valves
- Signal status display
- Yellow LED
- Mounting position
- Any
- Product weight
- 125 g
- Electrical connection 1
- Socket, to EN 175301-803, type C
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, note on cable outlet
- 90°
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, type of mounting
- On solenoid valve via M2.5 central screw
- Electrical connection 2, connector system
- Open end
- Electrical connection 2, number of connections/cores
- 3
- Nominal operating voltage DC
- 24 V
- Immunity to surge
- 0.8 kV
- Protective conductor connection
- Available
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Cable diameter
- 5.2 mm
- Cable structure
- 3 x 0.5 mm²
- Wire ends
- Wire ferrule
- Degree of protection
- IP65, To IEC 60529
- Ambient temperature
- -20 ... 80 °C
- CE mark (see declaration of conformity)
- In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Pollution degree
- 3
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- Material cable sheath
- PVC
- Material housing
- PA66-GF30
- Material seals
- NBR
- Material electrical contact
- Silver-plated copper alloy
- Product type
- Pneumatic coils/cable connectors
- Product group
- Pneumatics
- Voltage type
- DC
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Carbon footprint (EPD)
- 0.7838 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85444290
- HS code
- 8544.42
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4052568030742
- MPN 151688
Product Documentation
Document preview: KMEB-1-24-2.5-LED — Festo product documentation
