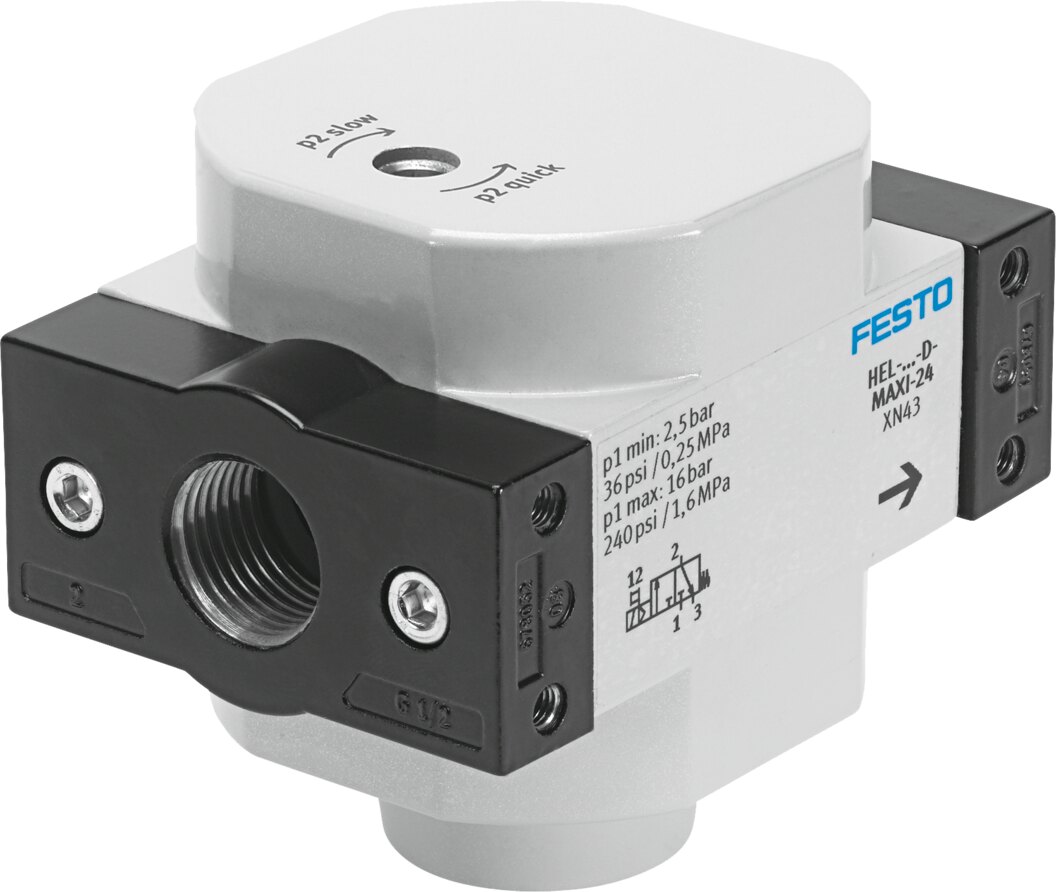

Festo HEL-3/4-D-MAXI On/off valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HEL-3/4-D-MAXI — On/off valve, compressed air preparation. valve function 2/2-way, single solenoid, closed; operating pressure 0.3. 1.6 MPa (3. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 165082 Type code: HEL-3/4-D-MAXI EAN / GTIN: 4052568137502 Product category: Compressed air preparation Lifecycle status: Phase-out Exhaust-air function: Can be throttled Type of actuation: Pneumatic Sealing principle: Soft Mounting position: Any Manual override: None Design: Piston gate valve Type of reset: Mechanical spring Type of piloting: Direct Flow direction: Non-reversible Symbol: 00991513 Valve function: 2/2-way, single solenoid, closed Operating pressure: 0.3 ... 1.6 MPa (3 ... 16 bar) b value: 0.38 C value: 33.9 l/sbar Standard nominal flow rate (standardised to DIN 1343): 6000 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-B1/B2-L Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Product weight: 394 g Type of mounting: Inline installation Pneumatic connection, port 1: G3/4 Pneumatic connection, port 2: G3/4 material seals: NBR material housing: Die-cast aluminium Product type: Air treatment Product group: Pneumatics Thread: 3/4" Activation: pneumatic Return: Spring Series: HEL Carbon footprint (EPD): 18.5274 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568137502
- MPN 165082
Product Documentation
More from Festo
Festo
Festo CPE10-3/2-PRS-1/4-4-NPT Manifold block
550603
Festo
Festo CPE18-H3-50 Retaining bracket
551492
Festo
Festo CLR-63-20-L-P-A Linear/swivel clamp
535466
Festo
Festo VUVG-L14-B52-G18-P1 Solenoid valve
8033531
Festo

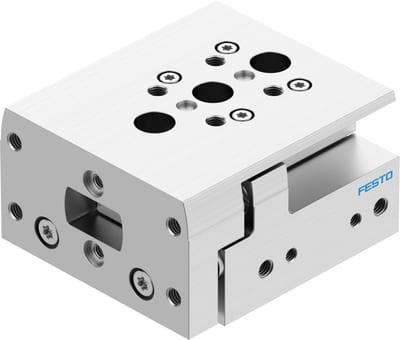

Festo DGST-16-10-E1A Mini slide
8078853
Festo
Festo VUVS-L20-M52-MZD-G18-F7-1C1 Solenoid valve
575680
Festo
Festo VABM-L1-14G-G14-16-GR Manifold rail
573497
Festo

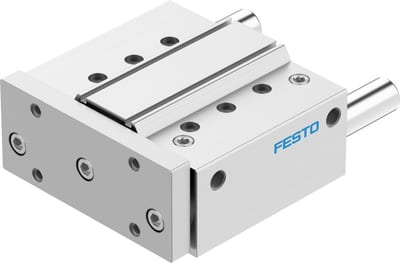

Festo DFM-80-100-P-A-GF Guided drive
