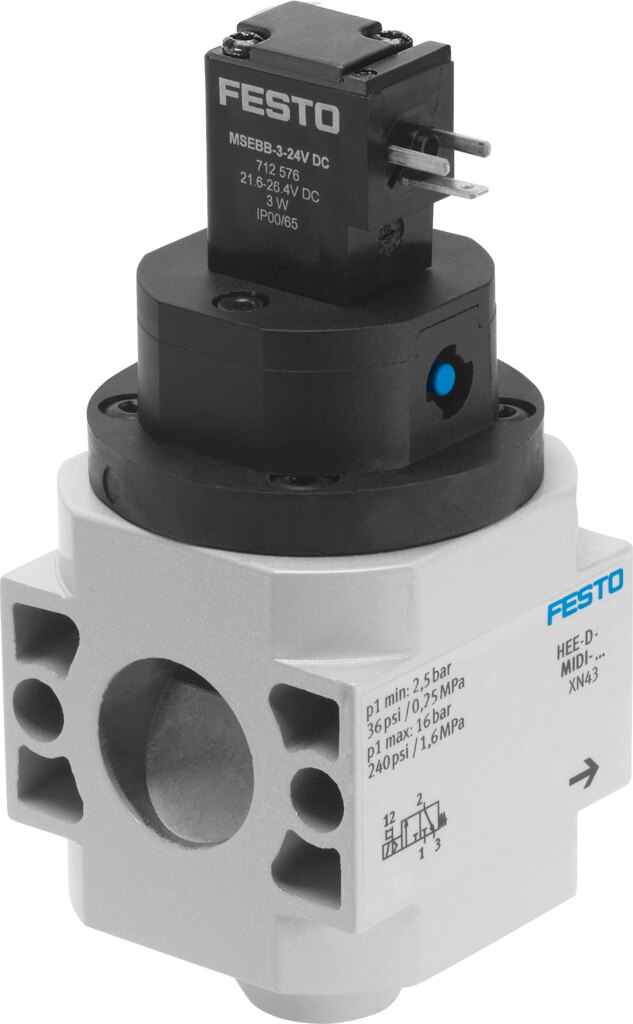

Festo HEE-D-MIDI-110 On/off valve

Festo HEE-D-MIDI-110 — On/off valve, compressed air preparation. valve function 3/2-way, single solenoid, closed; operating pressure 0.25. 1.6 MPa (2.5. 16 bar).

Manufacturer part number (MPN)

172960 Type code: HEE-D-MIDI-110 EAN / GTIN: 4052568140793 Product category: Compressed air preparation Lifecycle status: Phase-out Design: Piston gate valve Type of actuation: Electrical Sealing principle: Soft Exhaust-air function: Cannot be throttled Manual override: Detenting Type of reset: Mechanical spring Type of piloting: Piloted Symbol: 00991008 Valve function: 3/2-way, single solenoid, closed Operating pressure: 0.25 ... 1.6 MPa (2.5 ... 16 bar) lap: Overlap Duty cycle: 100% Characteristic coil data: 110 V AC: 50/60 Hz, pick-up power 5.0 VA, holding power 3.7 VA Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-B1/B2-L Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C CE mark (see declaration of conformity): To EU Low Voltage Directive UKCA marking (see declaration of conformity): To UK regulations for electrical equipment Type of mounting: Inline installation, With accessories Mounting position: Any Flow direction: Non-reversible Product weight: 500 g Pneumatic connection, port 3: G1/4 Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Electrical connection: Type C, Plug, To DIN EN 175301-803 Signal status display: With accessories material seals: NBR material housing: Die-cast aluminium Product type: Air treatment Product group: Pneumatics Activation: electric Return: Spring Series: HEE Carbon footprint (EPD): 3.0503 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20

HS Code

8481.20

• EAN 4052568140793
• MPN 172960
