Festo
Festo FRC-3/8-D-7-MIDI Service unit
Part number162757EAN / GTIN4052568132699HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FRC-3/8-D-7-MIDI — Service unit, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 162757
- Type code
- FRC-3/8-D-7-MIDI
- EAN / GTIN
- 4052568132699
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Condensate drain
- Manual, rotating
- Design
- Proportional standard mist lubricator
- Max. condensate volume
- 43 ml
- Grade of filtration
- 40 µm
- Bowl guard
- Metal bowl guard
- Symbol
- 00991549
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 7 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar; 2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 2000 l/min
- Operating medium
- Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:8:-], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1440 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Press Area
- 0.5 to 7 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 11.0748 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568132699
- MPN 162757
Product Documentation
Document preview: FRC-3/8-D-7-MIDI — Festo product documentation
More from Festo
Festo
Festo DZF-63-80-P-A Flat cylinder
164085
Festo
Festo LRS-1-D-DI-MAXI Pressure regulator
194678
Festo
Festo CRLBN-40 Clevis foot
195867
Festo
Festo ADNGF-40-10-P-A Compact cylinder
554249
Festo
Festo LFR-3/8-D-5M-O-MINI Filter regulator
192612
Festo
Festo LRS-3/4-D-MIDI Pressure regulator
194650
Festo

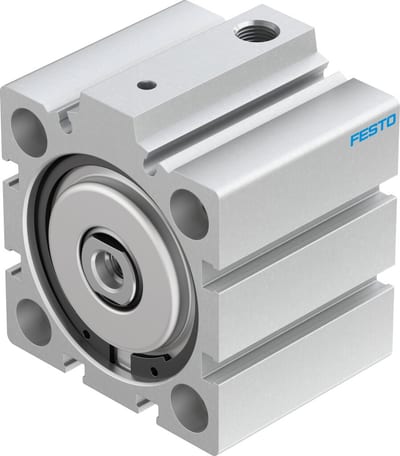

Festo AEVC Short stroke cylinder - 50mm, G1/8, 25mm, AEVC-50-25-I-P
