Festo
Festo FENG-63-320-KF Guide unit
Part number34518EAN / GTIN4052568115357HS code8412.90
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FENG-63-320-KF — Guide unit, linear guides. stroke 320 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 34518
- Type code
- FENG-63-320-KF
- EAN / GTIN
- 4052568115357
- Product category
- Linear guides
- Size
- 63
- Stroke
- 320 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Explosion protection
- The information in the certificate must be observed!
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. moment Mx
- 75 Nm
- Max. torque Mx static
- 95 Nm
- Max. moment My
- 90 Nm
- Max. torque My static
- 115 Nm
- Max. moment Mz
- 90 Nm
- Max. torque Mz static
- 115 Nm
- Displacement force
- 15 N
- Product weight
- 6978 g
- Type of mounting
- With female thread
- Material guide component
- Tempered steel
- Material housing
- Anodised wrought aluminium alloy
- Material yoke plate
- Anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 124.3813 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84129070
- HS code
- 8412.90
Standards & Compliance
- HS Code
- 8412.90
Cross References
- EAN 4052568115357
- MPN 34518
Product Documentation
Document preview: FENG-63-320-KF — Festo product documentation
More from Festo
Festo
Festo DADS-AB-G6-12-150 Covering
1090732
Festo

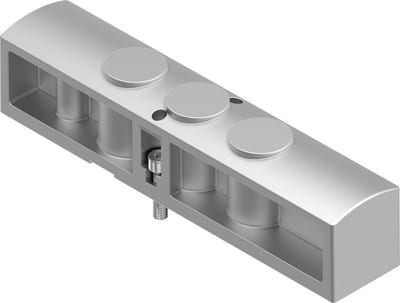

Festo VABB-B10-20-E Cover plate
576410
Festo

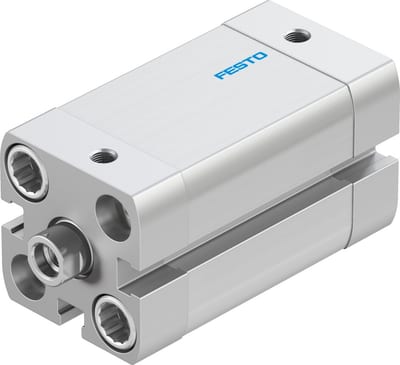

Festo ADN-20-30-I-PPS-A Compact cylinder
577162
Festo

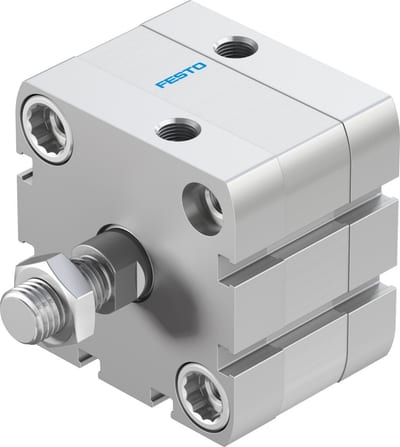

Festo ADN-50-5-A-P-A Compact cylinder
536310
Festo

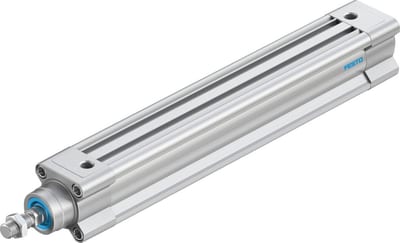

Festo DSBC-32-200-PPSA-N3 ISO cylinder
1376474
Festo

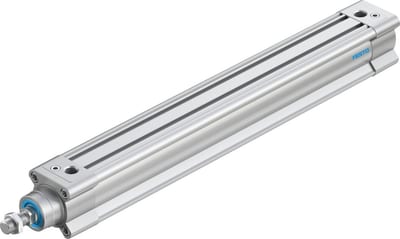

Festo DSBC-40-320-PPVA-N3 ISO cylinder
1376665
Festo

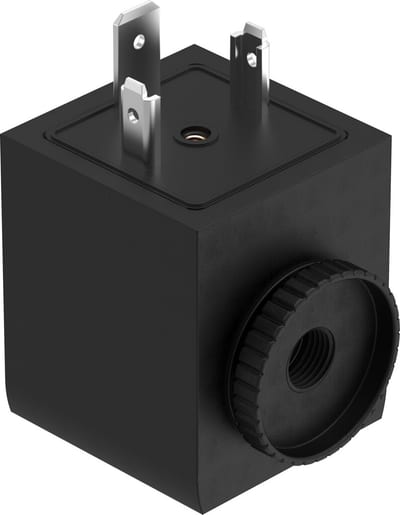

Festo VACF-A-A1-1 Solenoid coil
