Festo DZH-32-300-PPV-A Flat cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DZH-32-300-PPV-A — Flat cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 300 mm; piston diameter 32 mm, Equivalent diameter; operating pressure 0.06. 1 MPa (0.6. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 14050
- Type code
- DZH-32-300-PPV-A
- EAN / GTIN
- 4052568002671
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 300 mm
- Piston diameter
- 32 mm, Equivalent diameter
- Piston rod thread
- M10x1.25
- Torsional backlash at piston rod +/-
- 1.7 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Protection against torque/guide
- Oval piston
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Cushioning length
- 19 mm
- Max. torque for protection against torsion
- 1 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 483 N
- Moving mass
- 391 g
- Product weight
- 1261 g
- Additional weight per 10 mm stroke
- 25 g
- Basic weight for 0 mm stroke
- 511 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G1/8
- Material cover
- Aluminium
- Material seals
- TPE-U(PU)
- Material housing
- Aluminium
- Material piston seal
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Diameter
- 32 mm
- Carbon footprint (EPD)
- 27.9477 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568002671
- MPN 14050
Product Documentation
More from Festo
Festo
Festo VMPA14-M1H-X-PI Solenoid valve
573722
Festo
Festo DSBC-125-500-PPVA-N3 ISO cylinder
1804967
Festo
Festo CPE24-M1H-5/3B-3/8 Solenoid valve
170269
Festo
Festo PRS-1/4-4 Manifold block
10187
Festo
Festo CPE10-M1BH-5/3GS-QS4-B Solenoid valve
533148
Festo
Festo SMT-8M-A-PS-24V-E-2,5-Oe Proximity sensor
4052568103101
Festo
Festo VUVG-L10-T32H-AT-M5-1P3 Solenoid valve
566456
Festo

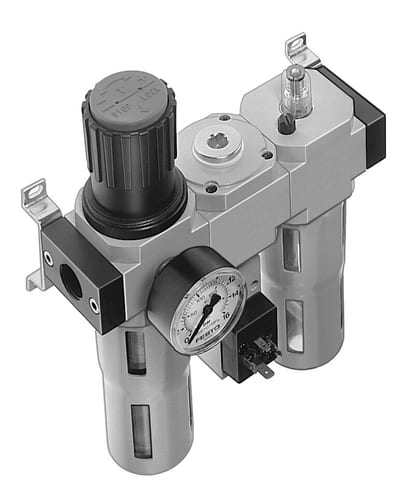

Festo FRC-1/2-D-MIDI-KB Service unit combination
