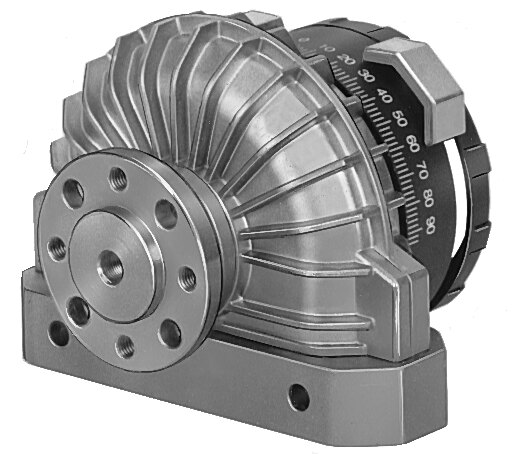

Festo DSRL-40-180-P-FW Semi-rotary drive
Part number30658EAN / GTIN4052568003746HS code8412.39
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSRL-40-180-P-FW — Semi-rotary drive, pneumatic cylinders. operating pressure 0.15. 0.8 MPa (1.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 30658
- Type code
- DSRL-40-180-P-FW
- EAN / GTIN
- 4052568003746
- Product category
- Pneumatic cylinders
- Size
- 40
- Cushioning angle
- 0.9 deg
- Rotation angle adjustment range
- 0 ... 180 deg
- Swivel angle
- 0 ... 180 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Vane
- Position detection
- None
- Symbol
- 00991265
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)
- 3 Hz
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 ... 60 °C
- Max. axial force
- 120 N
- Max. radial force
- 350 N
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 20 Nm
- Product weight
- 2400 g
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/4
- Material covering
- Reinforced PA
- Material drive shaft
- Steel, nickel-plated
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 40 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 45.3474 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568003746
- MPN 30658
Product Documentation
Document preview: DSRL-40-180-P-FW — Festo product documentation
More from Festo
Festo
Festo LFR-1/4-D-MINI-KD-A Service unit combination
185746
Festo
Festo MHP1-M5H-3/2O-M3-PI Solenoid valve
197034
Festo
Festo DSNU-16-60-P-A ISO cylinder
1908263
Festo
Festo VUWS-L25-M32U-A-G14 Pneumatic valve
575498
Festo
Festo VUVG-B14-T32C-AZT-F-1T1L-F1A Solenoid valve
8150402
Festo
Festo VABB-B10-30-A Cover plate
8026334
Festo
Festo DGSL-8-50-P1A Mini slide
543936
Festo
Festo HUA-63 Foot mounting
157315
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 30658?
- 30658 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 30658.
- What is the HS code for 30658?
- The customs tariff (HS) code for 30658 is 8412.39.
- Who manufactures 30658?
- 30658 is a Festo product in the Pneumatics range.
- Is a datasheet available for 30658?
- Yes — the 30658 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 30658?
- The minimum order quantity is 1.
- Is 30658 available?
- Yes — 30658 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
