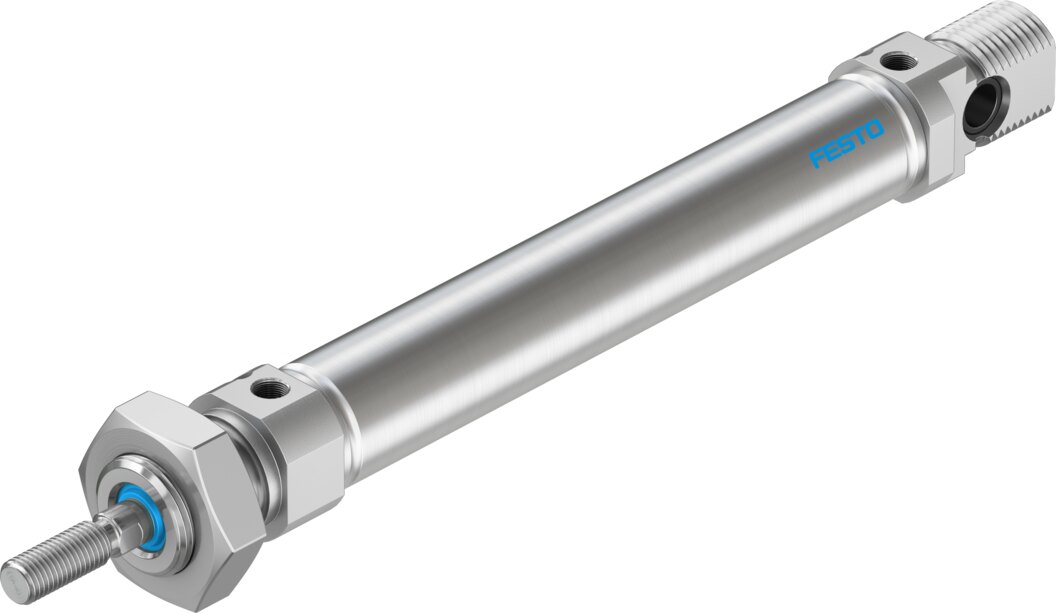

Festo DSNU-16-70-PPV-A ISO cylinder

Festo DSNU-16-70-PPV-A — ISO cylinder, round cylinders. stroke 70 mm; piston diameter 16 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

1908272

Type code

DSNU-16-70-PPV-A

EAN / GTIN

4052568108533

Product category

Round cylinders

Stroke

70 mm

Piston diameter

16 mm

Piston rod thread

M6

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 6432

Piston-rod end

Male thread

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.15 J

Cushioning length

12 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

103.7 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

120.6 N

Moving mass for 0 mm stroke

23 g

Additional moving mass per 10 mm stroke

2 g

Basic weight for 0 mm stroke

89.9 g

Additional weight per 10 mm stroke

4.6 g

Type of mounting

With accessories

Pneumatic connection

M5

Material cover

Wrought aluminium alloy, Colourless anodised

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy stainless steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

M5"

Temperature min

-20 °C

Temperature max

80 °C

Working pressure max

10 bar

Carbon footprint (EPD)

1.6517 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
