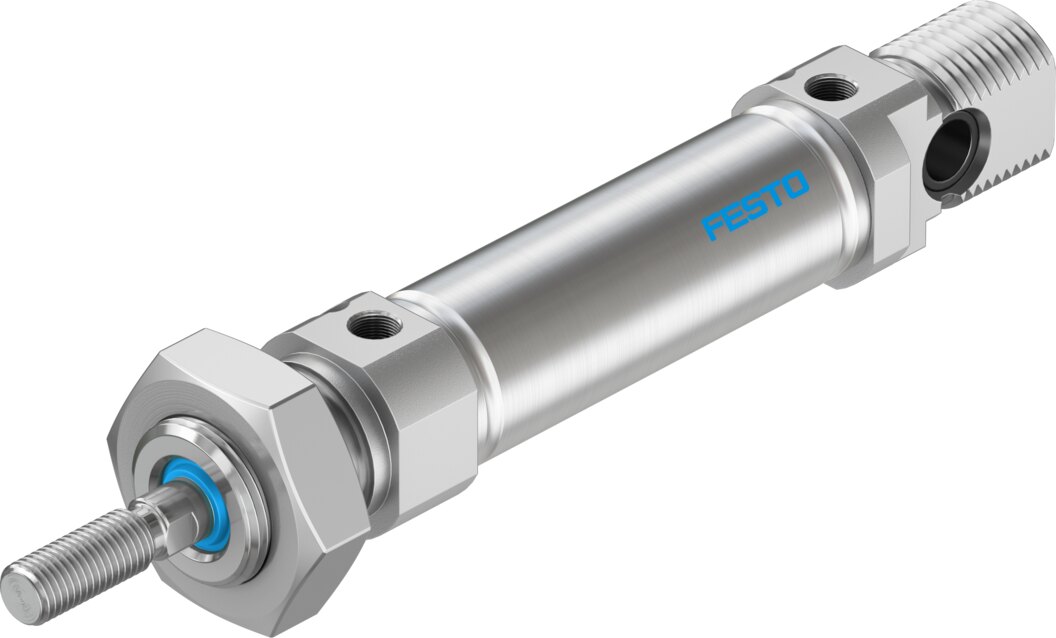

Festo DSNU-16-15-PPV-A ISO cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU-16-15-PPV-A — ISO cylinder, round cylinders. stroke 15 mm; piston diameter 16 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 1908267
- Type code
- DSNU-16-15-PPV-A
- EAN / GTIN
- 4052568108489
- Product category
- Round cylinders
- Stroke
- 15 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M6
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 6432
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.15 J
- Cushioning length
- 12 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 103.7 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 120.6 N
- Moving mass for 0 mm stroke
- 23 g
- Additional moving mass per 10 mm stroke
- 2 g
- Basic weight for 0 mm stroke
- 89.9 g
- Additional weight per 10 mm stroke
- 4.6 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy, Colourless anodised
- Material seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- M5"
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Working pressure max
- 10 bar
- Carbon footprint (EPD)
- 1.2388 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
