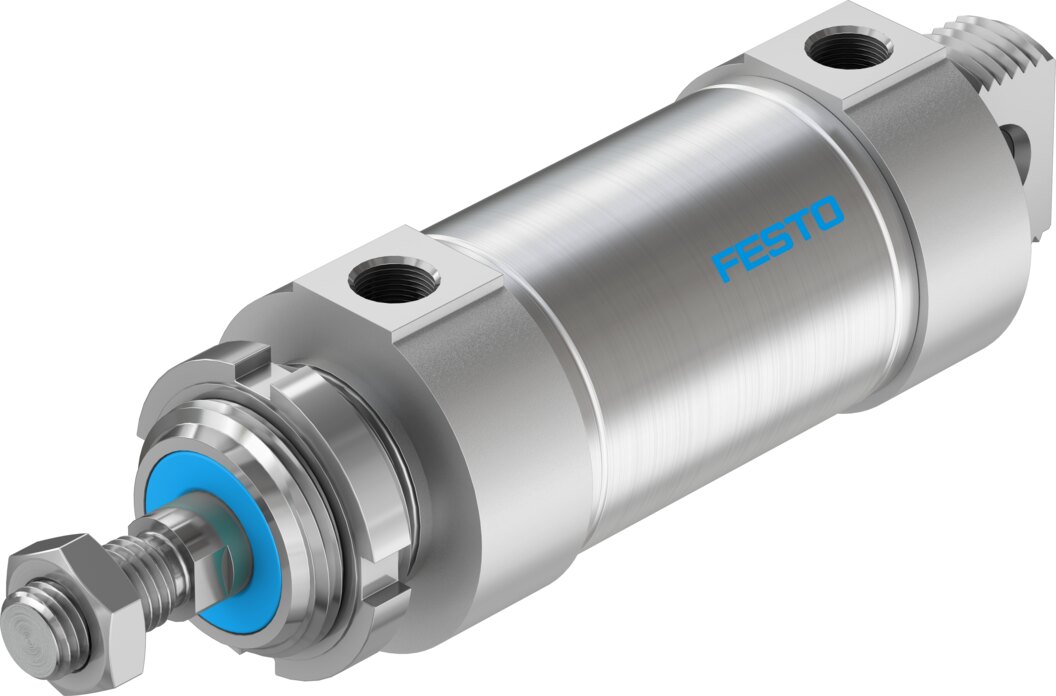

Festo DSNU-63-50-P-A Round cylinder

Festo DSNU-63-50-P-A — Round cylinder, round cylinders. stroke 50 mm; piston diameter 63 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

196012

Type code

DSNU-63-50-P-A

EAN / GTIN

4052568158637

Product category

Round cylinders

Stroke

50 mm

Piston diameter

63 mm

Piston rod thread

M16x1.5

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00991217

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

1.3 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

1681.9 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

1870.3 N

Moving mass

584 g

Product weight

1665 g

Type of mounting

With accessories

Pneumatic connection

G3/8

Material cover

Wrought aluminium alloy

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

G3/8"

Carbon footprint (EPD)

22.8071 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568158637
• MPN 196012
