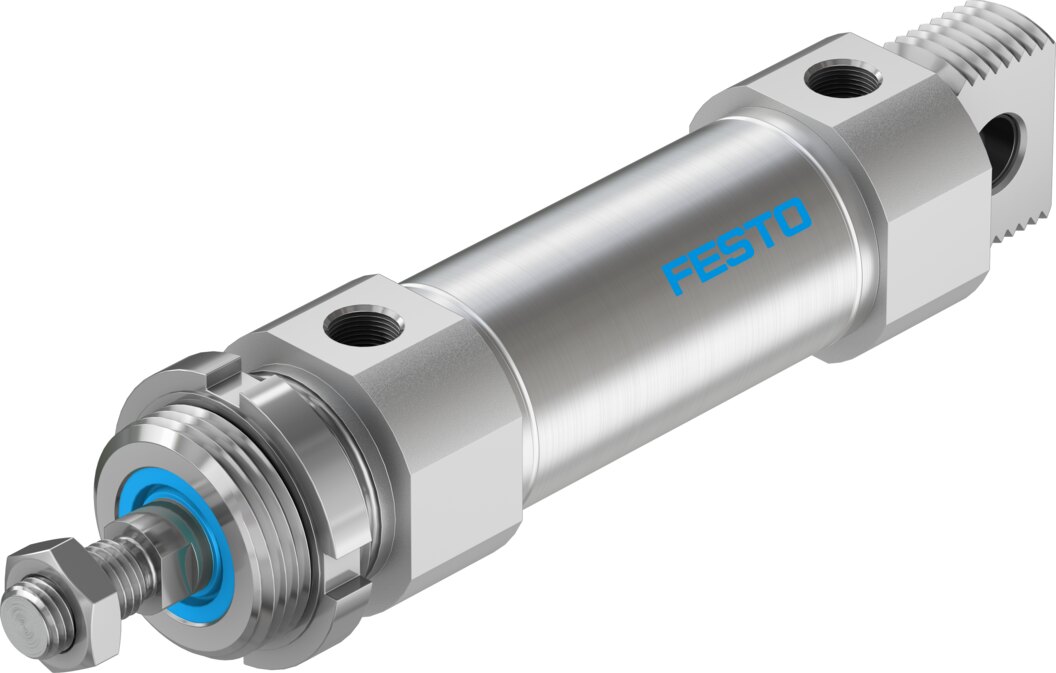

Festo DSNU-40-50-P-A Round cylinder

Festo DSNU-40-50-P-A — Round cylinder, round cylinders. stroke 50 mm; piston diameter 40 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

195992

Type code

DSNU-40-50-P-A

EAN / GTIN

4052568158439

Product category

Round cylinders

Stroke

50 mm

Piston diameter

40 mm

Piston rod thread

M12x1.25

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00991217

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.7 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

633.3 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

752.9 N

Moving mass

310 g

Product weight

781 g

Type of mounting

With accessories

Pneumatic connection

G1/4

Material cover

Wrought aluminium alloy

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

G1/4"

Carbon footprint (EPD)

10.6259 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568158439
• MPN 195992
