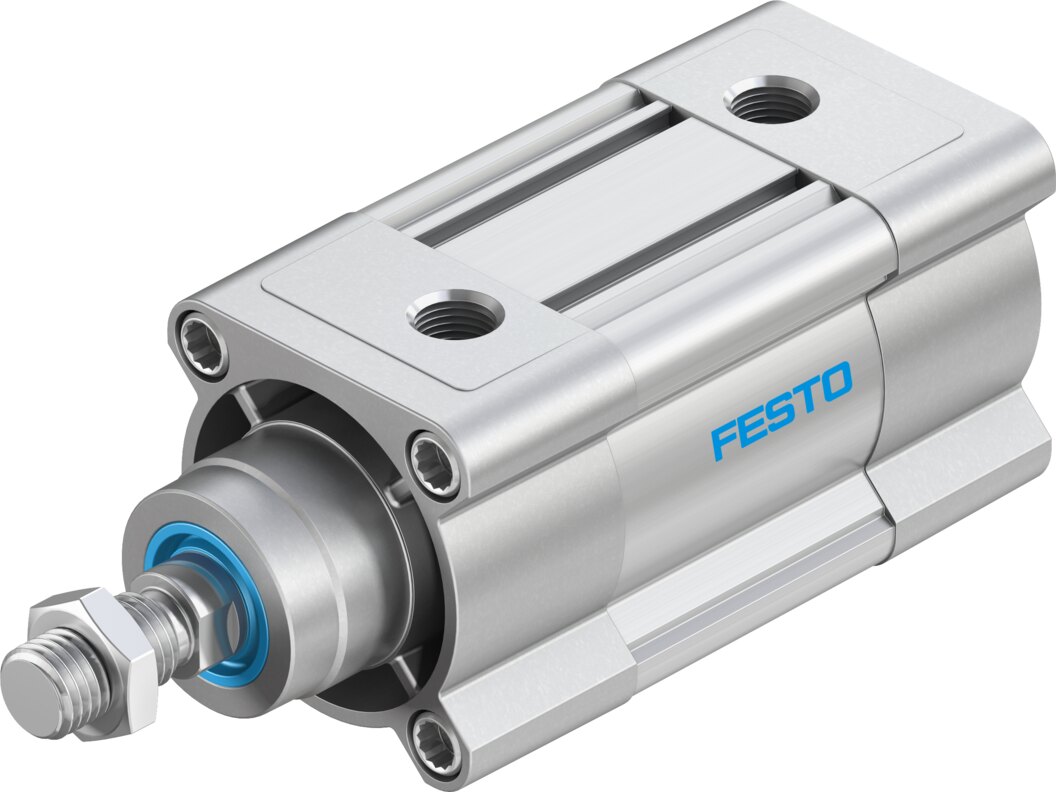

Festo DSBC-63-25-PPSA-N3 ISO cylinder
Part number1383632EAN / GTIN4052568232238HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBC-63-25-PPSA-N3 — ISO cylinder, profile cylinder and tie rod cylinder. stroke 25 mm; piston diameter 63 mm; operating pressure 0.04. 1.2 MPa (0.4. 12 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 1383632
- Type code
- DSBC-63-25-PPSA-N3
- EAN / GTIN
- 4052568232238
- Product category
- Profile cylinder and tie rod cylinder
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 ... 1.2 MPa (0.4 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.3 J
- Cushioning length
- 22 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 1682 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1870 N
- Moving mass
- 493 g
- Moving mass for 0 mm stroke
- 430 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 1895 g
- Basic weight for 0 mm stroke
- 1740 g
- Additional weight per 10 mm stroke
- 62 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G3/8
- Material cover
- Coated die-cast aluminium
- Material piston seal
- TPE-U(PU)
- Material piston
- Wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- TPE-U(PU)
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material bearing
- POM
- Material collar screws
- Galvanised steel
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Port Size
- 3/8"
- Carbon footprint (EPD)
- 36.0838 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568232238
- MPN 1383632
Product Documentation
Document preview: DSBC-63-25-PPSA-N3 — Festo product documentation
