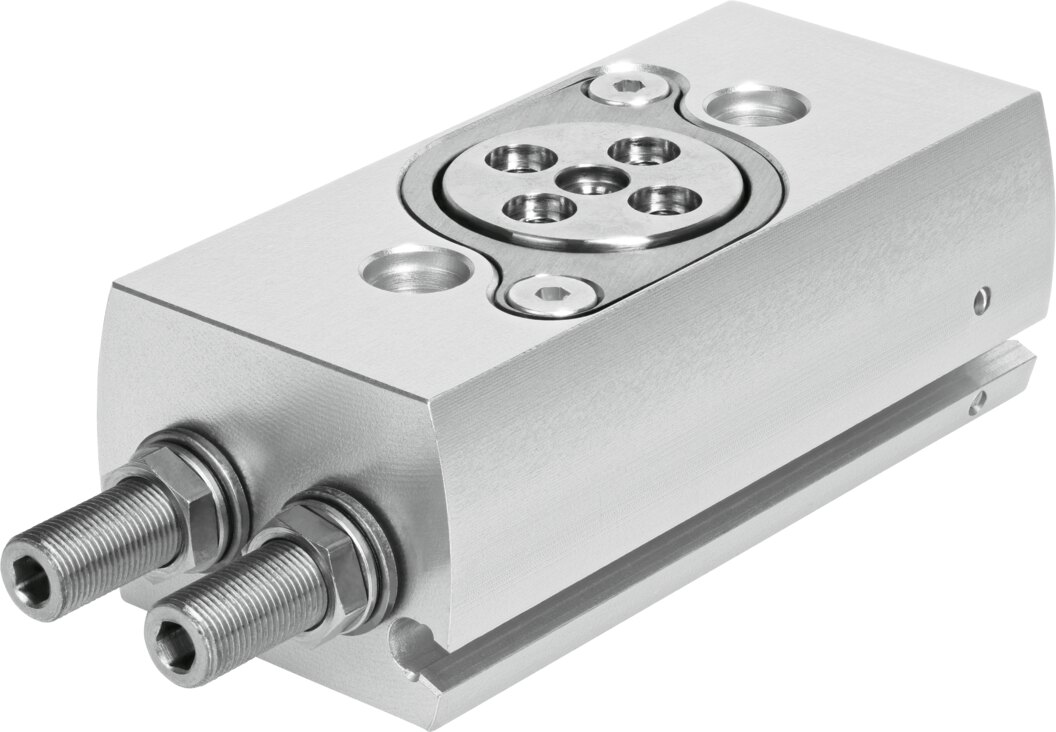

Festo DRRD-8-180-FH-PA Semi-rotary drive
Part number2223060EAN / GTIN4052568253011HS code8412.39
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DRRD-8-180-FH-PA — Semi-rotary drive, rack and pinion actuators. operating pressure 0.3. 0.8 MPa (3. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 2223060
- Type code
- DRRD-8-180-FH-PA
- EAN / GTIN
- 4052568253011
- Product category
- Rack and pinion actuators
- Size
- 8
- Cushioning angle
- 38 deg
- Setting range of swivel angle for each end position
- +10 /-100 deg
- Swivel angle
- 180 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Rack and pinion
- Position detection
- Via proximity switch
- Symbol
- 00991265
- Operating pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364 zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 0.2 Nm
- Permissible mass moment of inertia
- 0.0015 kgm²
- Product weight
- 155 g
- Type of mounting
- With through-hole, with female thread
- Pneumatic connection
- M3
- Material drive shaft
- High-alloy stainless steel
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Smooth-anodised
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 8 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 4.0497 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568253011
- MPN 2223060
Product Documentation
Document preview: DRRD-8-180-FH-PA — Festo product documentation
