Festo DNC-125-100-PPV ISO cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DNC-125-100-PPV — ISO cylinder, pneumatic cylinders. stroke 100 mm; piston diameter 125 mm; operating pressure 0.06. 1 MPa (0.6. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 163515
- Type code
- DNC-125-100-PPV
- EAN / GTIN
- 4052568135072
- Product category
- Pneumatic cylinders
- Lifecycle status
- Phase-out
- Stroke
- 100 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- None
- Symbol
- 00991232
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 5 J
- Cushioning length
- 42 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 6881 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 7363 N
- Moving mass for 0 mm stroke
- 2809 g
- Additional moving mass per 10 mm stroke
- 63 g
- Basic weight for 0 mm stroke
- 6771 g
- Additional weight per 10 mm stroke
- 168 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G1/2
- Material cover
- Die-cast aluminium, coated
- Material seals
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy, Smooth-anodised
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/2"
- Carbon footprint (EPD)
- 174.1135 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568135072
- MPN 163515
Product Documentation
More from Festo
Festo
Festo MHA1-P4-2-M3 Manifold
197208
Festo
Festo AEVUZ-50-20-A-P-A Compact cylinder
157284
Festo
Festo FKC-18 Moment compensator
538714
Festo
Festo LFR-3/8-D-MIDI-KF-A Service unit combination
185774
Festo

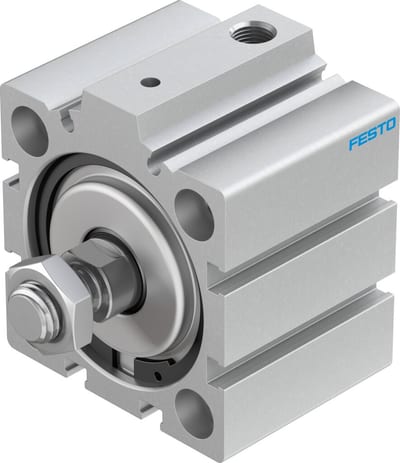

Festo AEVC Short stroke cylinder - 50mm, G1/8, 10mm, AEVC-50-10-A-P-A
