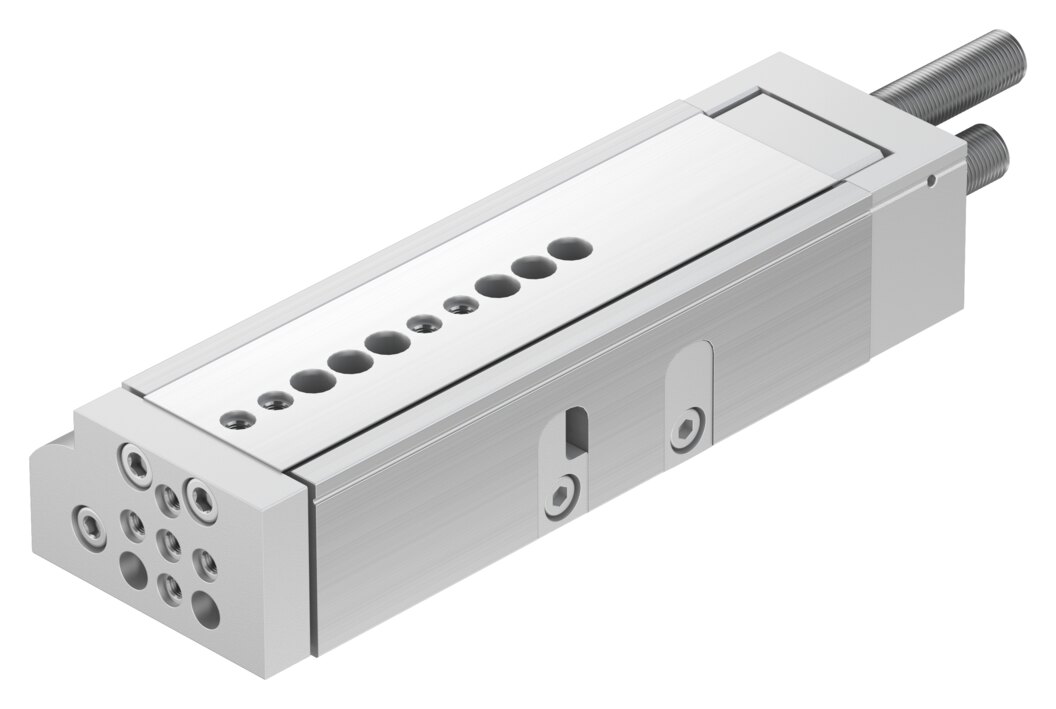

Festo DGSL-16-80-P1A Mini slide
Part number543996EAN / GTIN4052568183394HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-16-80-P1A — Mini slide, drives with slides. stroke 80 mm; piston diameter 20 mm; operating pressure 0.1. 0.8 MPa (1. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 543996
- Type code
- DGSL-16-80-P1A
- EAN / GTIN
- 4052568183394
- Product category
- Drives with slides
- Stroke
- 80 mm
- Adjustable end position range/length front
- 72.5 mm
- Adjustable end position range/length rear
- 39.5 mm
- Piston diameter
- 20 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends with fixed stop
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.12 J
- Cushioning length
- 4.2 mm
- Max. force Fy
- 2800 N
- Max. force Fz
- 2800 N
- Max. moment Mx
- 50 Nm
- Max. moment My
- 27 Nm
- Max. moment Mz
- 27 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 158 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 188 N
- Moving mass
- 618 g
- Product weight
- 1445 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 20.3705 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568183394
- MPN 543996
Product Documentation
Document preview: DGSL-16-80-P1A — Festo product documentation
More from Festo
Festo
Festo VUVG-L10-P53C-T-M7-1P3 Solenoid valve
566476
Festo
Festo LBG-100-R3 Clevis foot
2078799
Festo
Festo CPE18-M2H-5L-1/4 Solenoid valve
163762
Festo
Festo JMFDH-5-1/4 Solenoid valve
10411
Festo
Festo QS-1/2-12-I Push-in fitting
153021
Festo
Festo CPE24-M3H-5/3B-3/8 Solenoid valve
4052568138776
Festo
Festo DSBC-40-60-PPVA-N3 ISO cylinder
2123224
Festo
Festo FENG-32-500-KF Guide unit
34498
