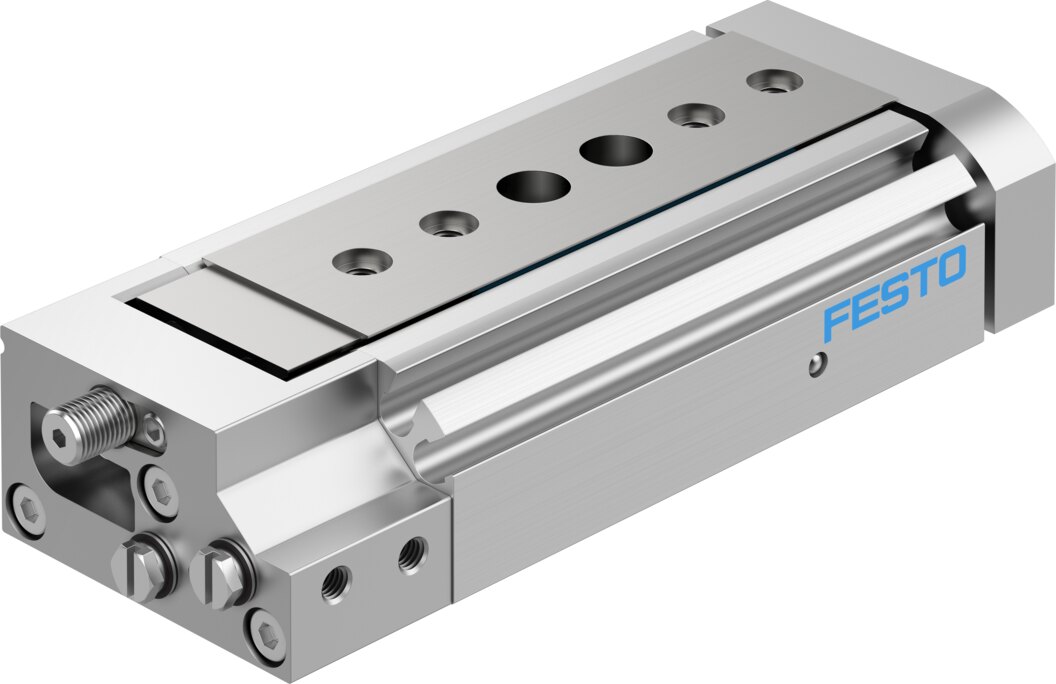

Festo DGSL-6-20-EA Mini slide
Part number570162EAN / GTIN4052568216573HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-6-20-EA — Mini slide, drives with slides. stroke 20 mm; piston diameter 8 mm; operating pressure 0.15. 0.8 MPa (1.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 570162
- Type code
- DGSL-6-20-EA
- EAN / GTIN
- 4052568216573
- Product category
- Drives with slides
- Stroke
- 20 mm
- Adjustable end position range/length front
- 19 mm
- Adjustable end position range/length rear
- 3.5 mm
- Piston diameter
- 8 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. speed
- 0.5 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.05 J
- Cushioning length
- 1.5 mm
- Max. force Fy
- 590 N
- Max. force Fz
- 590 N
- Max. moment Mx
- 7 Nm
- Max. moment My
- 5 Nm
- Max. moment Mz
- 5 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 23 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 30 N
- Moving mass
- 76 g
- Product weight
- 183 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 4.1231 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568216573
- MPN 570162
Product Documentation
Document preview: DGSL-6-20-EA — Festo product documentation
More from Festo
Festo
Festo HUA-20-R3 Foot mounting
176874
Festo
Festo FRC-1/4-D-O-MIDI Service unit
186498
Festo
Festo YSR-20-25-C Shock absorber
34574
Festo
Festo ADN-50-15-A-P-A Compact cylinder
536312
Festo
Festo ADVUL-100-15-P-A Compact cylinder
156922
Festo

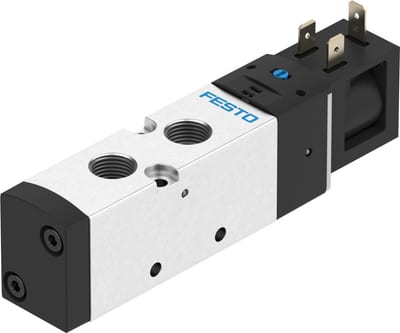

Festo VUVS-LK25-M52-AD-G14-1B2-S Solenoid valve
