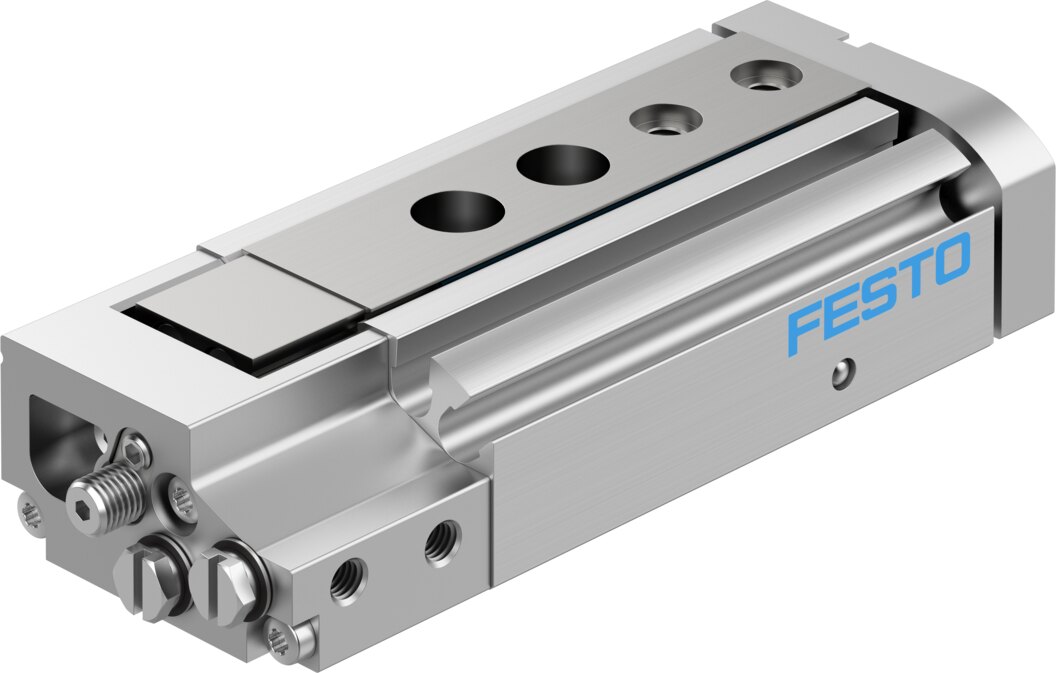

Festo DGSL-4-10-EA Mini slide
Part number570158EAN / GTIN4052568216535HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-4-10-EA — Mini slide, drives with slides. stroke 10 mm; piston diameter 6 mm; operating pressure 0.25. 0.8 MPa (2.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 570158
- Type code
- DGSL-4-10-EA
- EAN / GTIN
- 4052568216535
- Product category
- Drives with slides
- Stroke
- 10 mm
- Adjustable end position range/length front
- 4.5 mm
- Adjustable end position range/length rear
- 3.5 mm
- Piston diameter
- 6 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Max. speed
- 0.5 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.015 J
- Cushioning length
- 0.9 mm
- Max. force Fy
- 343 N
- Max. force Fz
- 343 N
- Max. moment Mx
- 2 Nm
- Max. moment My
- 2 Nm
- Max. moment Mz
- 2 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 13 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 17 N
- Moving mass
- 31 g
- Product weight
- 84 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 2.4667 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568216535
- MPN 570158
Product Documentation
Document preview: DGSL-4-10-EA — Festo product documentation
More from Festo
Festo
Festo DZF-50-40-A-P-A Flat cylinder
161295
Festo
Festo QST-12-8 Push-in T-connector
130615
Festo
Festo DADS-AB-G6-12-50 Covering
1162406
Festo
Festo ADNGF-16-20-P-A Compact cylinder
554215
Festo
Festo DZF-18-160-A-P-A Flat cylinder
161244
Festo
Festo ADN-80-80-A-PPS-A Compact cylinder
572735
Festo

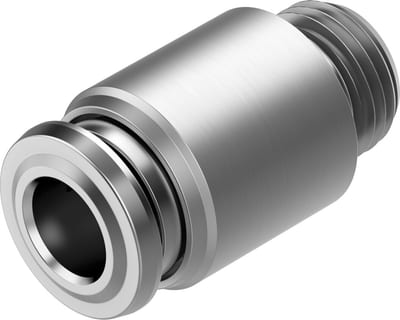

Festo NPQR-DK-G18-Q6 Push-in fitting
8085662
Festo

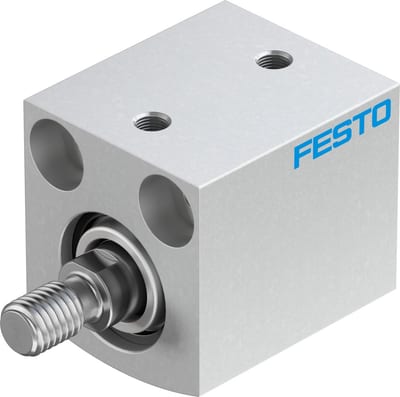

Festo ADVC Short stroke cylinder - 20mm, M5, 15mm, ADVC-20-15-A-P
