Festo

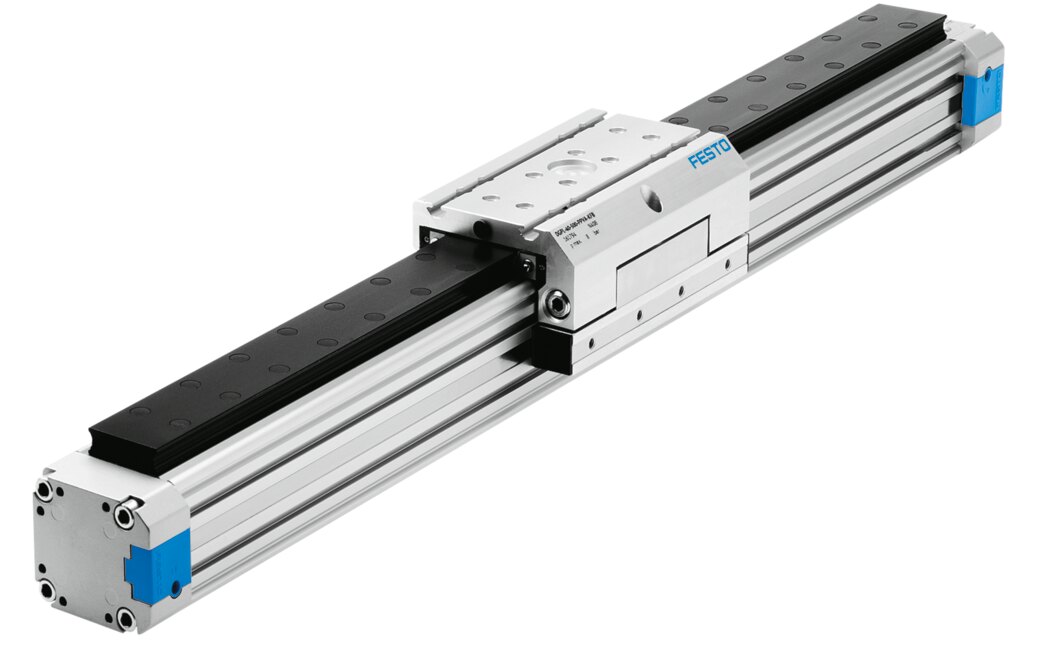

Festo DGPL-25-250-PPV-A-B-KF Linear drive
Part number526649EAN / GTIN4052568162382HS code8412.31
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGPL-25-250-PPV-A-B-KF — Linear drive, pneumatic cylinders. stroke 250 mm; piston diameter 25 mm; operating pressure 0.2. 0.8 MPa (2. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 526649
- Type code
- DGPL-25-250-PPV-A-B-KF
- EAN / GTIN
- 4052568162382
- Product category
- Pneumatic cylinders
- Stroke
- 250 mm
- Piston diameter
- 25 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Coupling design
- Positive-locking (slot)
- Position detection
- Via proximity switch
- Symbol
- 00991254
- Operating pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 60 °C
- Cushioning length
- 18 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 295 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 295 N
- Moving mass
- 600 g
- Moving mass for 0 mm stroke
- 600 g
- Additional moving mass per 10 mm stroke
- 53 g
- Basic weight for 0 mm stroke
- 1520 g
- alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Material cover
- Die-cast aluminium, coated
- Material seals
- NBR, TPE-U(PU)
- Material housing
- anodised
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 55.4478 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568162382
- MPN 526649
Product Documentation
Document preview: DGPL-25-250-PPV-A-B-KF — Festo product documentation
More from Festo
Festo
Festo LRS-1-D-7-MAXI Pressure regulator
194668
Festo

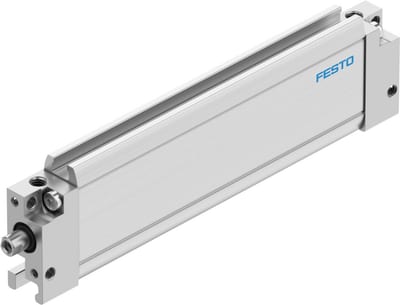

Festo DZF-12-80-P-A Flat cylinder
