Festo

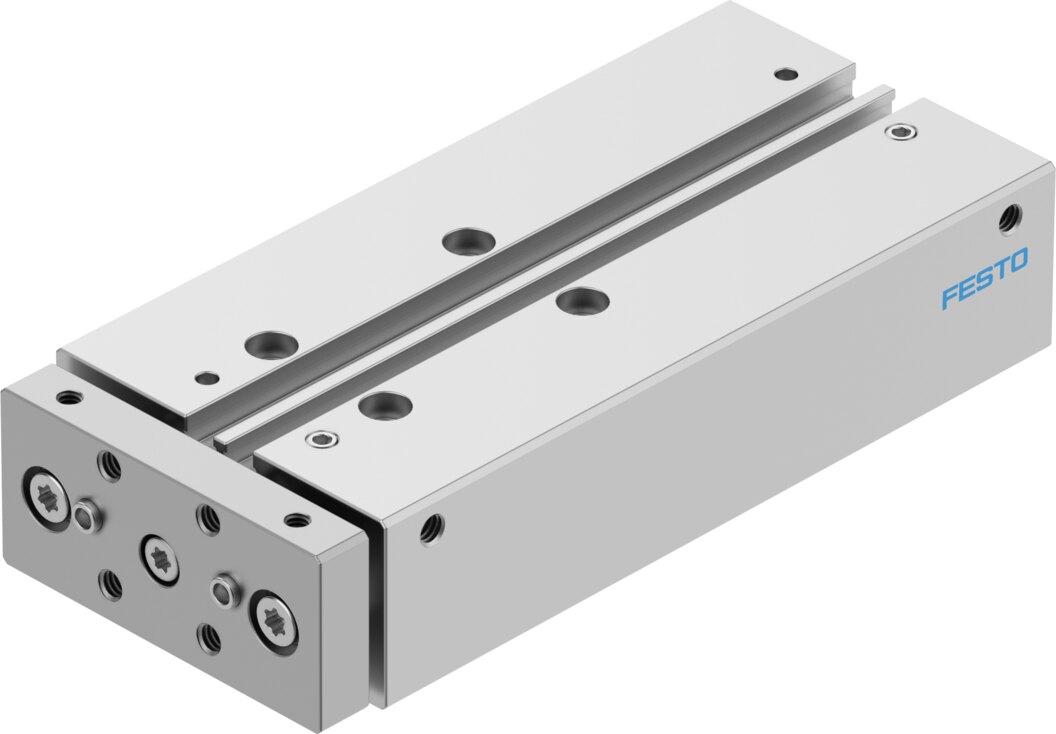

Festo DFM-16-80-B-PPV-A-KF Guided drive
Part number559463EAN / GTIN4052568362669HS code8412.31
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-16-80-B-PPV-A-KF — Guided drive, drives with guide rods. stroke 80 mm; piston diameter 16 mm; operating pressure 0.2. 1 MPa (2. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 559463
- Type code
- DFM-16-80-B-PPV-A-KF
- EAN / GTIN
- 4052568362669
- Product category
- Drives with guide rods
- Stroke
- 80 mm
- Piston diameter
- 16 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 ... 60 °C
- Impact energy in end positions
- 0.15 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 104 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 121 N
- alternative connections
- See product drawing
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 19.6895 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568362669
- MPN 559463
Product Documentation
Document preview: DFM-16-80-B-PPV-A-KF — Festo product documentation
More from Festo
Festo
Festo VUWG-L10-T32U-M-M7 Pneumatic valve
4052568222604
Festo
Festo QS-4 Push-in connector
153031
Festo
Festo LFR-3/4-D-DI-MAXI Filter regulator
192374
Festo
Festo PLN-6X1-SW Plastic tubing
195281
Festo
Festo DNC-63-25-PPV ISO cylinder
163415
Festo
Festo QSY-10-8 Push-in Y-connector
153155
Festo
Festo AEVUZ-16-10-A-P-A Compact cylinder
157258
Festo

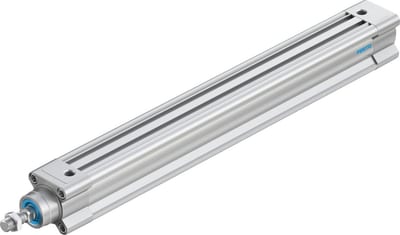

Festo DSBC-32-320-PPSA-N3 ISO cylinder
