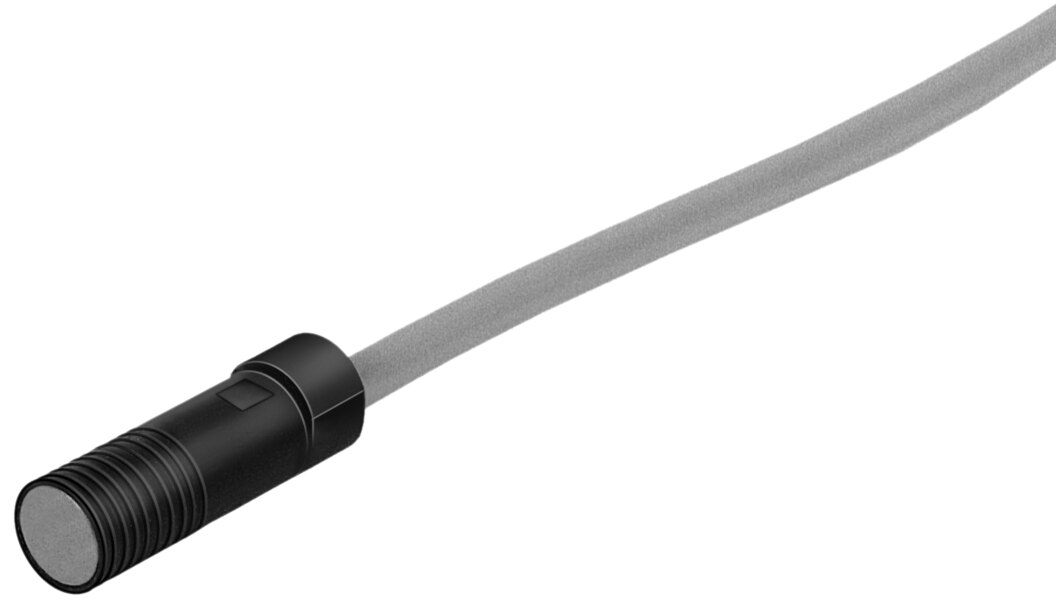

Festo CRSMEO-4-K-LED-24 Proximity sensor
Pricing
Request a quote
We reply within 24 hours
Overview
Festo CRSMEO-4-K-LED-24 Proximity sensor (part number 161775) is listed under Pneumatics / Pneumatic Components. Type code: CRSMEO-4-K-LED-24; Product category: Sensors; Design: Round; Symbol: 00991145; Approval: RCM; Measured variable: Position.
Technical Specifications
- Manufacturer part number (MPN)
- 161775
- Type code
- CRSMEO-4-K-LED-24
- EAN / GTIN
- 4052568071974
- Product category
- Sensors
- Design
- Round
- Symbol
- 00991145
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 ... 60 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Switch-on time
- 0.5 ms
- Switch-off time
- 0.03 ms
- Max. switching frequency
- 800 Hz
- Max. output current
- 500 mA
- Max. switching capacity DC
- 10 W
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Short circuit current rating
- No
- Rated operational voltage DC
- 24 V
- Operational voltage range DC
- 12 ... 30 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connector system
- Open end
- Electrical connection 1, number of connections/cores
- 3
- Connection outlet orientation
- In-line
- Cable length
- 2.5 m
- Cable sheath colour
- Grey
- Material cable sheath
- TPE-O
- Type of mounting
- With accessories
- Product weight
- 70 g
- Housing colour
- Black
- Material housing
- PP
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 60 °C
- Degree of protection
- IP67
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.4438 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568071974
- MPN 161775
Product Documentation
More from Festo
Festo
Festo LFMB-3/8-D-MINI-A Fine filter
162636
Festo
Festo HEE-3/8-D-MINI-230 On/off valve
172940
Festo
Festo DZH-25-320-PPV-A Flat cylinder
151130
Festo
Festo DSBC-80-20-PPSA-N3 ISO cylinder
2126636
Festo

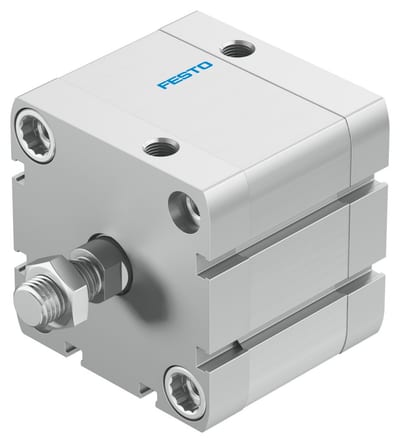

Festo ADN-63-20-A-PPS-A Compact cylinder
572711
Festo

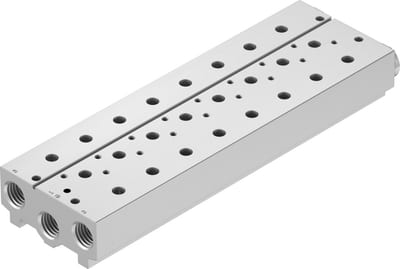

Festo VABM-B10-30S-G12-8 Manifold block
