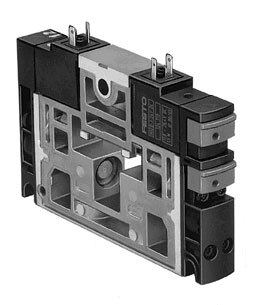

Festo CPV18-M1H-2X3-GLS-1/4 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPV18-M1H-2X3-GLS-1/4 — Solenoid valve, universal valve modules. valve function 2x3/2 closed monostable; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 163189
- Type code
- CPV18-M1H-2X3-GLS-1/4
- EAN / GTIN
- 4052568012892
- Product category
- Universal valve modules
- Valve function
- 2x3/2 closed monostable
- Type of actuation
- Electrical
- Valve size
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- pneumatic working port
- G1/4
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- C-Tick
- Degree of protection
- IP65
- Nominal size
- 8 mm
- Exhaust-air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External, Internal
- Flow direction
- Non-reversible
- Symbol
- 00991808
- lap
- Overlap
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- b value
- 0.38
- C value
- 6.3 l/sbar
- Switching time off
- 24 ms
- Switching time on
- 18 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1.5 W
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 260 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- Common line
- Pilot exhaust port 82/84
- Common line
- Pneumatic connection, port 1
- Common line
- Pneumatic connection, port 11
- Common line
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection 3/5 combined
- Common line
- Pneumatic connection, port 4
- G1/4
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, Brass, POM, PPS, Steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 5.3363 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568012892
- MPN 163189
Product Documentation
More from Festo
Festo
Festo FRC-1/4-D-5M-O-MIDI Service unit
192653
Festo

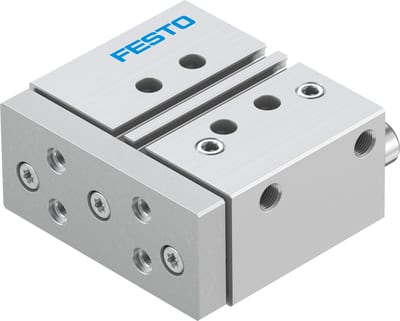

Festo DFM-25-25-P-A-GF Guided drive
170848
Festo
Festo DADP-DGC-18-KF Shock absorber retainer
541729
Festo

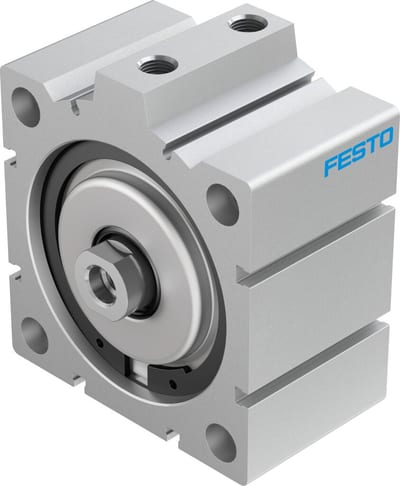

Festo ADVC Short stroke cylinder - 100mm, G1/4, 10mm, ADVC-100-10-I-P-A
188332
Festo

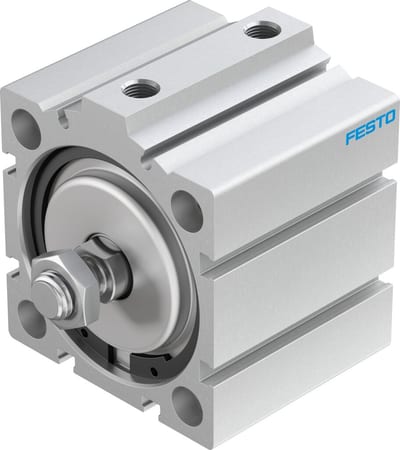

Festo ADVC Short stroke cylinder - 63mm, G1/8, 20mm, ADVC-63-20-A-P-A
188294
Festo
Festo FRC-1/2-D-5M-MAXI Service unit
186507
Festo

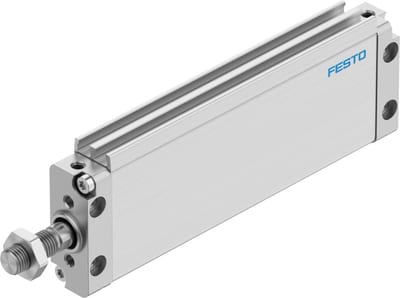

Festo DZF-25-100-A-P-A Flat cylinder
