Festo

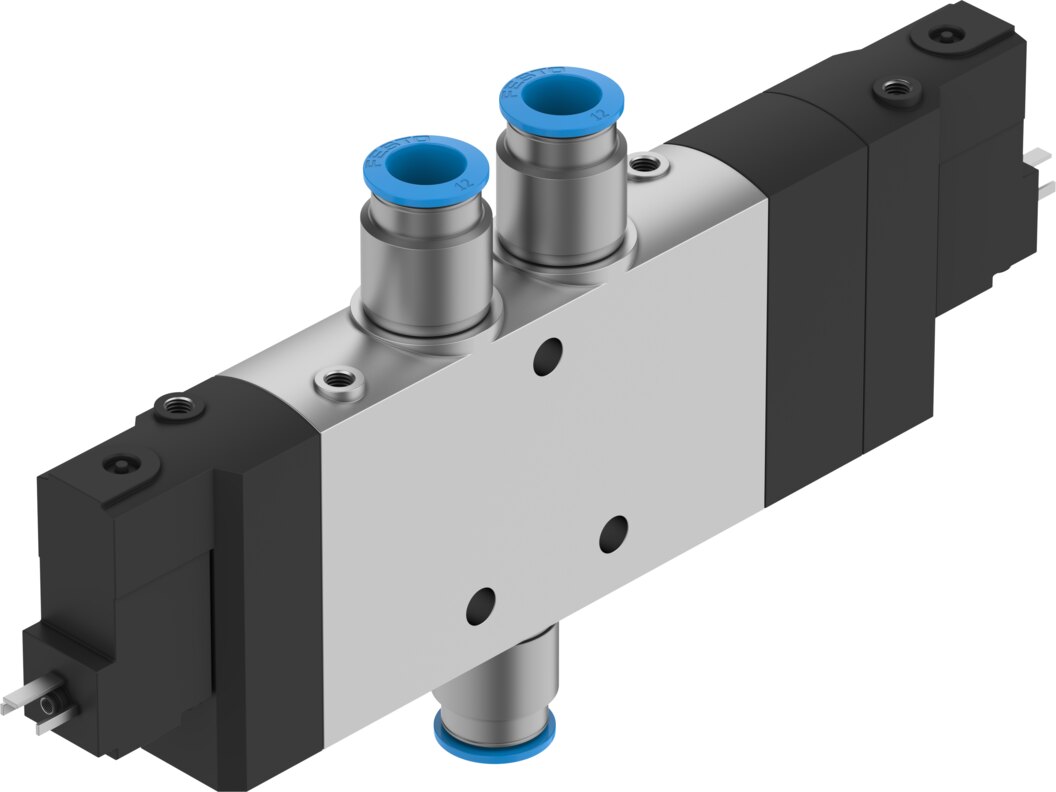

Festo CPE24-M1H-5/3G-QS-12 Solenoid valve
Part number170277EAN / GTIN4052568138134HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE24-M1H-5/3G-QS-12 — Solenoid valve, valves and valve terminals. valve function 5/3-way, closed; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 11 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 170277
- Type code
- CPE24-M1H-5/3G-QS-12
- EAN / GTIN
- 4052568138134
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, closed
- Type of actuation
- Electrical
- Construction width
- 24 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1650 l/min
- pneumatic working port
- QS-12
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 11 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991033
- Valve position code
- Label holder
- lap
- Overlap
- Switching time off
- 55 ms
- Switching time on
- 25 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse with 1 signal
- 3100 µs
- Characteristic coil data
- 24 V DC: 1.5 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Electrical connection
- Type C
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- QS-12
- Pneumatic connection, port 2
- QS-12
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- QS-12
- Pneumatic connection, port 5
- G3/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- QS-12"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 11.5852 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568138134
- MPN 170277
Product Documentation
Document preview: CPE24-M1H-5/3G-QS-12 — Festo product documentation
More from Festo
Festo
Festo GRLA-3/8-QS-10-RS-D One-way flow control valve
534343
Festo
Festo FENG-100-400-KF Guide unit
34535
Festo
Festo DSNU-50-50-PPS-A Round cylinder
559317
Festo
Festo NPQR-L-Q12-E Plug
8085713
Festo
Festo VABM-L1-14W-G14-24-M-GR Manifold rail
573938
Festo
Festo DSNU-50-25-PPV-A Round cylinder
196040
Festo
Festo LFMBA-1/2-D-MIDI-DA Filter combination
532868
Festo
Festo WSR-25-J Mounting kit
14799
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 170277?
- 170277 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 170277.
- What is the HS code for 170277?
- The customs tariff (HS) code for 170277 is 8481.20.
- Who manufactures 170277?
- 170277 is a Festo product in the Pneumatics range.
- Is a datasheet available for 170277?
- Yes — the 170277 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 170277?
- The minimum order quantity is 1.
- Is 170277 available?
- Yes — 170277 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
