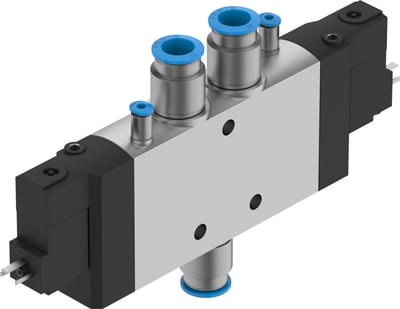

Festo CPE24-M2H-5/3E-QS-10 Solenoid valve

Festo CPE24-M2H-5/3E-QS-10 — Solenoid valve, valves and valve terminals. valve function 5/3 exhausted; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 11 mm.

Manufacturer part number (MPN)

170309

Type code

CPE24-M2H-5/3E-QS-10

EAN / GTIN

4052568138455

Product category

Valves and valve terminals

Valve function

5/3 exhausted

Type of actuation

Electrical

Construction width

24 mm

Standard nominal flow rate (standardised to DIN 1343)

1250 l/min

pneumatic working port

QS-10

Operating voltage

110V AC

Operating pressure

0.25 ... 1 MPa (2.5 ... 10 bar)

Design

Piston gate valve

Type of reset

Mechanical spring

Approval

c UL us - Recognised (Oil)

Maritime classification

See certificate

CE mark (see declaration of conformity)

To EU Low Voltage Directive

UKCA marking (see declaration of conformity)

To UK regulations for electrical equipment

Certificate issuing authority

UL MH19482

Degree of protection

IP65, with plug socket, To IEC 60529

Nominal size

11 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting via accessory, Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991036

Valve position code

Label holder

lap

Overlap

Switching time off

55 ms

Switching time on

25 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

3300 µs

Max. negative test pulse with 1 signal

3100 µs

Characteristic coil data

110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA

Permissible voltage fluctuations

-15% / +10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Ambient temperature

-5 ... 50 °C

Electrical connection

Type C

Type of mounting

With through-hole

Pilot exhaust port 82

M5

Pilot exhaust port 84

M5

Pilot air port 12

M5

Pilot air port 14

M5

Pneumatic connection, port 1

QS-10

Pneumatic connection, port 2

QS-10

Pneumatic connection, port 3

G3/8

Pneumatic connection, port 4

QS-10

Pneumatic connection, port 5

G3/8

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

QS-10"

Activation

El

Return

Spring

Carbon footprint (EPD)

10.9894 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
