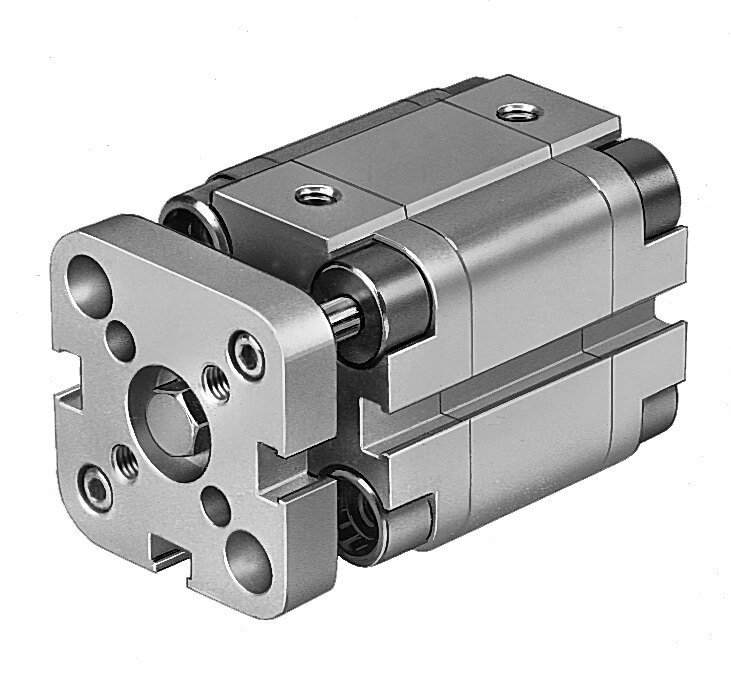

Festo ADVUL-16-20-P-A Compact cylinder

Festo ADVUL-16-20-P-A — Compact cylinder, pneumatic cylinders. stroke 20 mm; piston diameter 16 mm; operating pressure 0.15. 1 MPa (1.5. 10 bar).

Manufacturer part number (MPN)

156854

Type code

ADVUL-16-20-P-A

EAN / GTIN

4052568121075

Product category

Pneumatic cylinders

Stroke

20 mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Design

Piston, Piston rod

Position detection

Via proximity switch

Symbol

00991737

Variants

Piston rod at one end

Protection against torque/guide

Guide rod with yoke

Operating pressure

0.15 ... 1 MPa (1.5 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.1 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

90 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

121 N

Moving mass for 0 mm stroke

26 g

Additional moving mass per 10 mm stroke

6 g

Basic weight for 0 mm stroke

103 g

Additional weight per 10 mm stroke

16 g

Type of mounting

With through-hole, with accessories

Pneumatic connection

M5

Material collar screws

High-alloy stainless steel

Material cover

Wrought aluminium alloy

Material dynamic seals

NBR, TPE-U(PU)

Material piston rod

High-alloy stainless steel

Material cylinder barrel

Wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M5

Carbon footprint (EPD)

2.5779 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568121075
• MPN 156854
