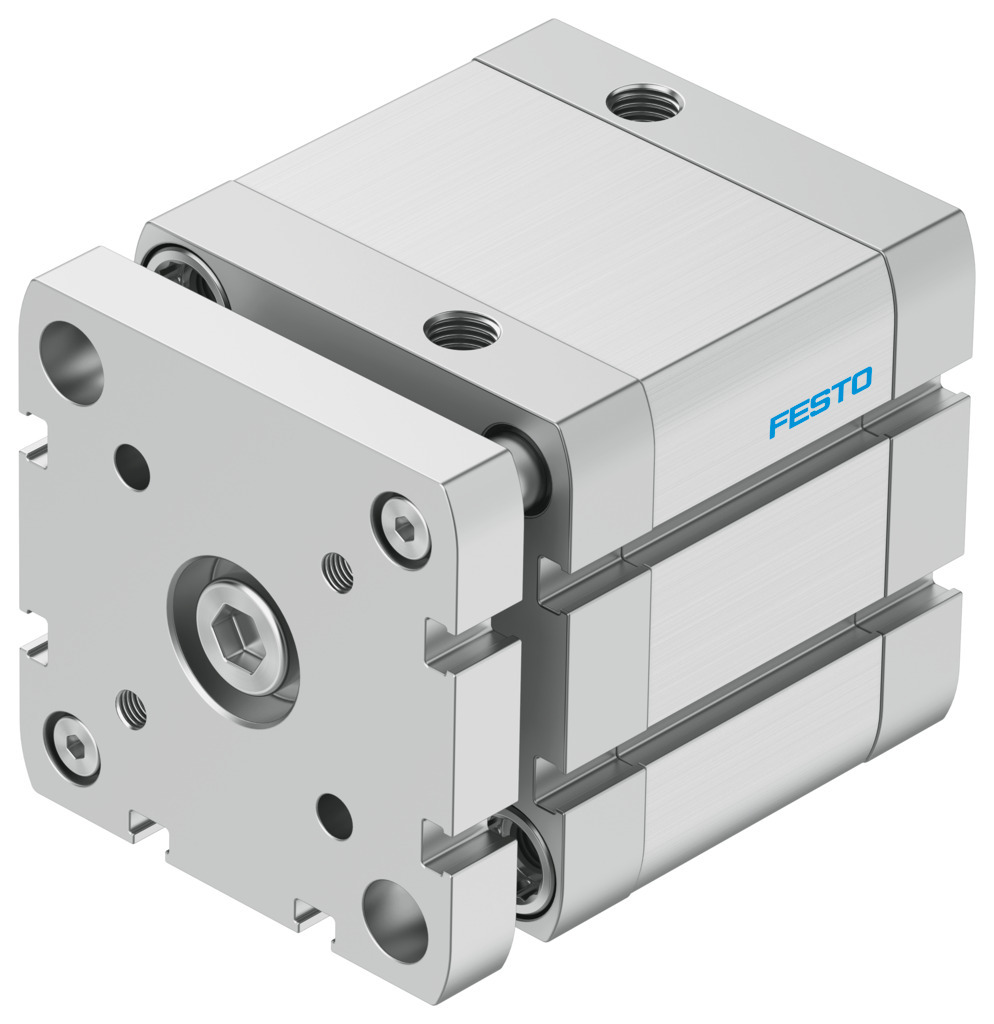

Festo ADNGF-63-25-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF-63-25-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 25 mm; piston diameter 63 mm; operating pressure 0.14. 1 MPa (1.4. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 574052
- Type code
- ADNGF-63-25-PPS-A
- EAN / GTIN
- 4052568221751
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Based on standard
- ISO 21287
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.14 ... 1 MPa (1.4 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 4.8 J
- Cushioning length
- 7 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 1750 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1870 N
- Moving mass
- 488 g
- Product weight
- 1126 g
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 19.3345 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568221751
- MPN 574052
Product Documentation
More from Festo
Festo
Festo DSNU-16-160-PPS-A ISO cylinder
559269
Festo
Festo LFMA-1/4-D-MIDI-DA-A Micro filter
532856
Festo
Festo CPE14-3/2-PRS-3/8-9-NPT Manifold block
550617
Festo
Festo SZSB-25 Swivel flange
151925
Festo
Festo ADVU-100-10-P-A Compact cylinder
156577
Festo
Festo LF-3/4-D-MAXI Filter
159614
Festo
Festo QSL-1/8-8 Push-in L-fitting
4052568011062
Festo

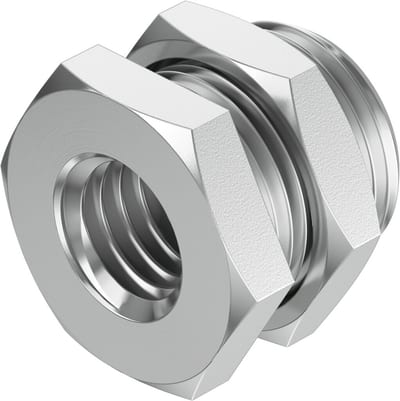

Festo NPFC-H-G14-F Bulkhead fitting
