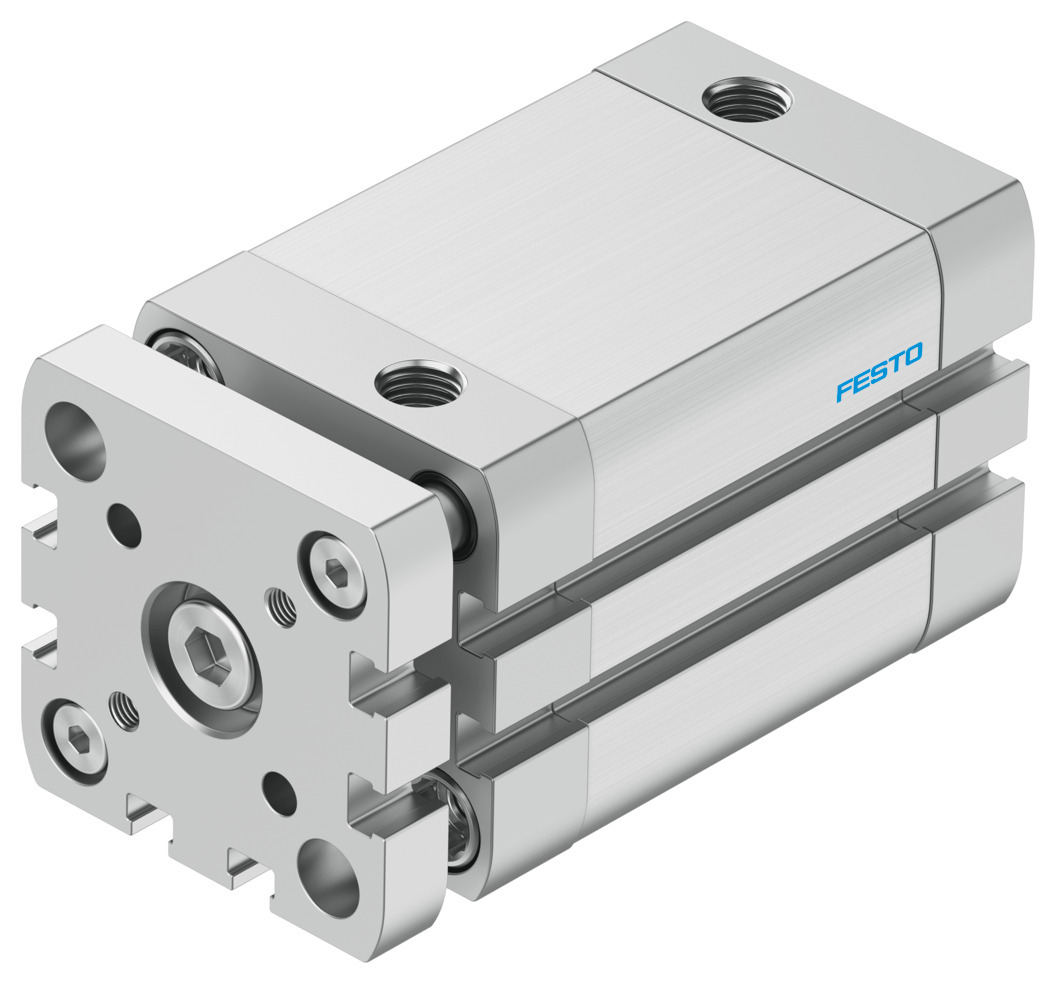

Festo ADNGF-40-40-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF-40-40-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 40 mm; piston diameter 40 mm; operating pressure 0.14. 1 MPa (1.4. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 574036
- Type code
- ADNGF-40-40-PPS-A
- EAN / GTIN
- 4052568221591
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 40 mm
- Piston diameter
- 40 mm
- Based on standard
- ISO 21287
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.14 ... 1 MPa (1.4 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.7 J
- Cushioning length
- 5 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 686 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 754 N
- Moving mass
- 251 g
- Product weight
- 627 g
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 12.1635 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568221591
- MPN 574036
Product Documentation
More from Festo
Festo
Festo DZF-50-80-P-A Flat cylinder
164071
Festo
Festo QSY-6-100 Push-in Y-connector
130808
Festo
Festo SMT-8M-A-PO-24V-E-7,5-Oe Proximity sensor
574340
Festo
Festo LFMB-3/8-D-MINI-DA-A Fine filter
532829
Festo
Festo ADVU-80-20-P-A Compact cylinder
156570
Festo
Festo LFR-1/2-D-DI-MAXI-KC-A Service unit combination
192456
Festo
Festo DSNU-12-200-P-A ISO cylinder
19197
Festo
Festo DGSL-20-150-Y3A Mini slide
544028
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 574036?
- 574036 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 574036.
- What is the HS code for 574036?
- The customs tariff (HS) code for 574036 is 8412.31.
- Who manufactures 574036?
- 574036 is a Festo product in the Pneumatics range.
- Is a datasheet available for 574036?
- Yes — the 574036 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 574036?
- The minimum order quantity is 1.
- Is 574036 available?
- Yes — 574036 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
