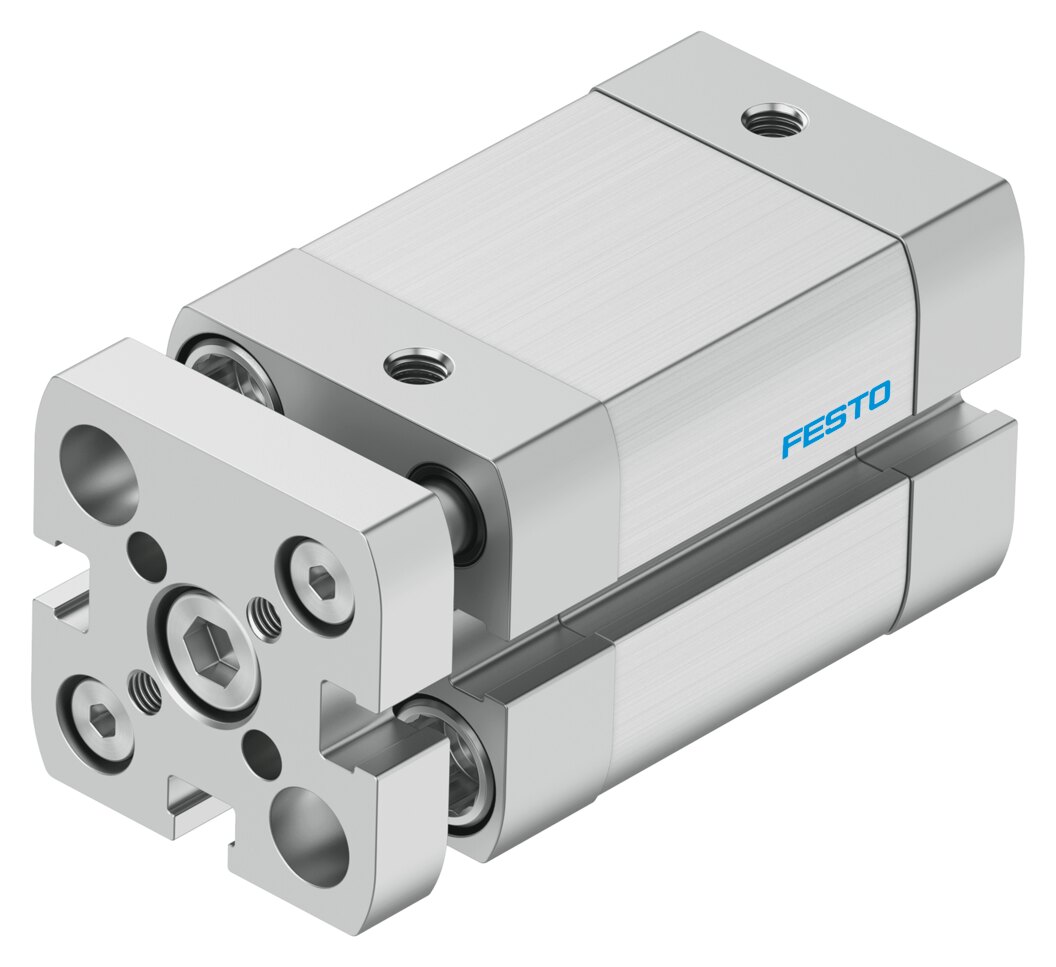

Festo ADNGF-20-20-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF-20-20-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 20 mm; piston diameter 20 mm; operating pressure 0.19. 1 MPa (1.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 577210
- Type code
- ADNGF-20-20-PPS-A
- EAN / GTIN
- 4052568225643
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 20 mm
- Piston diameter
- 20 mm
- Based on standard
- ISO 21287
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.19 ... 1 MPa (1.9 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.2 J
- Cushioning length
- 3 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 141 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 188 N
- Moving mass
- 78 g
- Product weight
- 203 g
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 3.8647 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568225643
- MPN 577210
Product Documentation
More from Festo
Festo
Festo DNC-100-500-PPV ISO cylinder
163490
Festo
Festo HSR-12-FW Foot mounting
30923
Festo
Festo DFM-32-100-P-A-KF Guided drive
170935
Festo
Festo MFH-5/3B-1/8-S-B Solenoid valve
30995
Festo
Festo VUVS-LK20-M32C-AD-G18-1C1-S Solenoid valve
8043213
Festo
Festo ADVU-16-5-A-P-A Compact cylinder
156593
Festo
Festo PUN-H-F-10X1,5-Bl Plastic tubing
8153402
Festo
Festo MFH-5/3E-1/4-S-B-EX Solenoid valve
535946
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 577210?
- 577210 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 577210.
- What is the HS code for 577210?
- The customs tariff (HS) code for 577210 is 8412.31.
- Who manufactures 577210?
- 577210 is a Festo product in the Pneumatics range.
- Is a datasheet available for 577210?
- Yes — the 577210 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 577210?
- The minimum order quantity is 1.
- Is 577210 available?
- Yes — 577210 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
