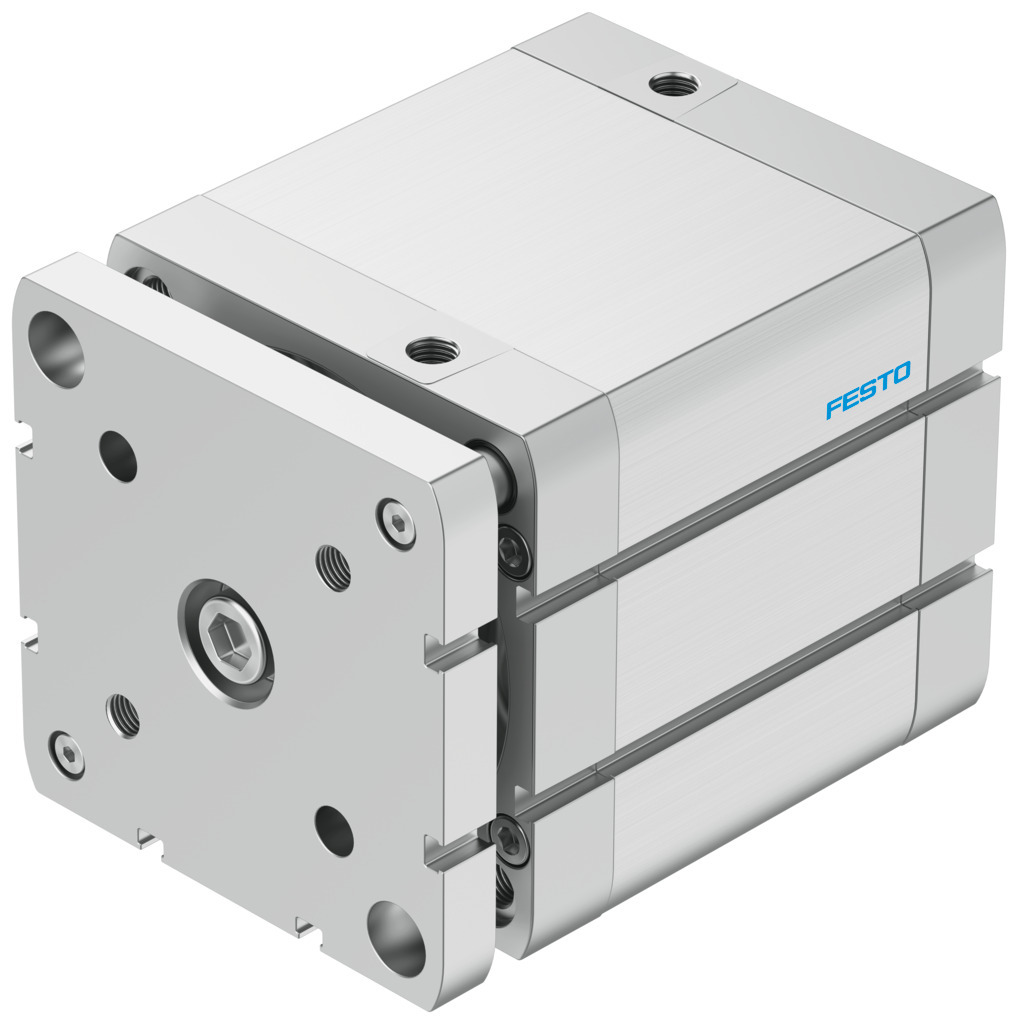

Festo ADNGF-100-60-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF-100-60-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 60 mm; piston diameter 100 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 554293
- Type code
- ADNGF-100-60-P-A
- EAN / GTIN
- 4052568199180
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 60 mm
- Piston diameter
- 100 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 2.5 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 4524 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 4712 N
- Moving mass
- 1321 g
- Product weight
- 2902 g
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Coated die-cast aluminium
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 61.7070 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568199180
- MPN 554293
Product Documentation
More from Festo
Festo
Festo VUVS-L30-M32U-MZD-G38-F8 Solenoid valve
575582
Festo
Festo QSL-1/8-6 Push-in L-fitting
4052568011048
Festo
Festo LF-3/8-D-MIDI Filter
159576
Festo
Festo NPQR-BK-G12 Plug screw
8085676
Festo
Festo DGSL-25-40-P1A Mini slide
544042
Festo
Festo DSBC-32-500-PPVA-N3 ISO cylinder
1376433
Festo
Festo LDM1-D-MAXI-300 Membrane air dryer
543664
Festo
Festo MHP1-M5H-3/2O-M3-TC Solenoid valve
197031
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 554293?
- 554293 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 554293.
- What is the HS code for 554293?
- The customs tariff (HS) code for 554293 is 8412.31.
- Who manufactures 554293?
- 554293 is a Festo product in the Pneumatics range.
- Is a datasheet available for 554293?
- Yes — the 554293 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 554293?
- The minimum order quantity is 1.
- Is 554293 available?
- Yes — 554293 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
