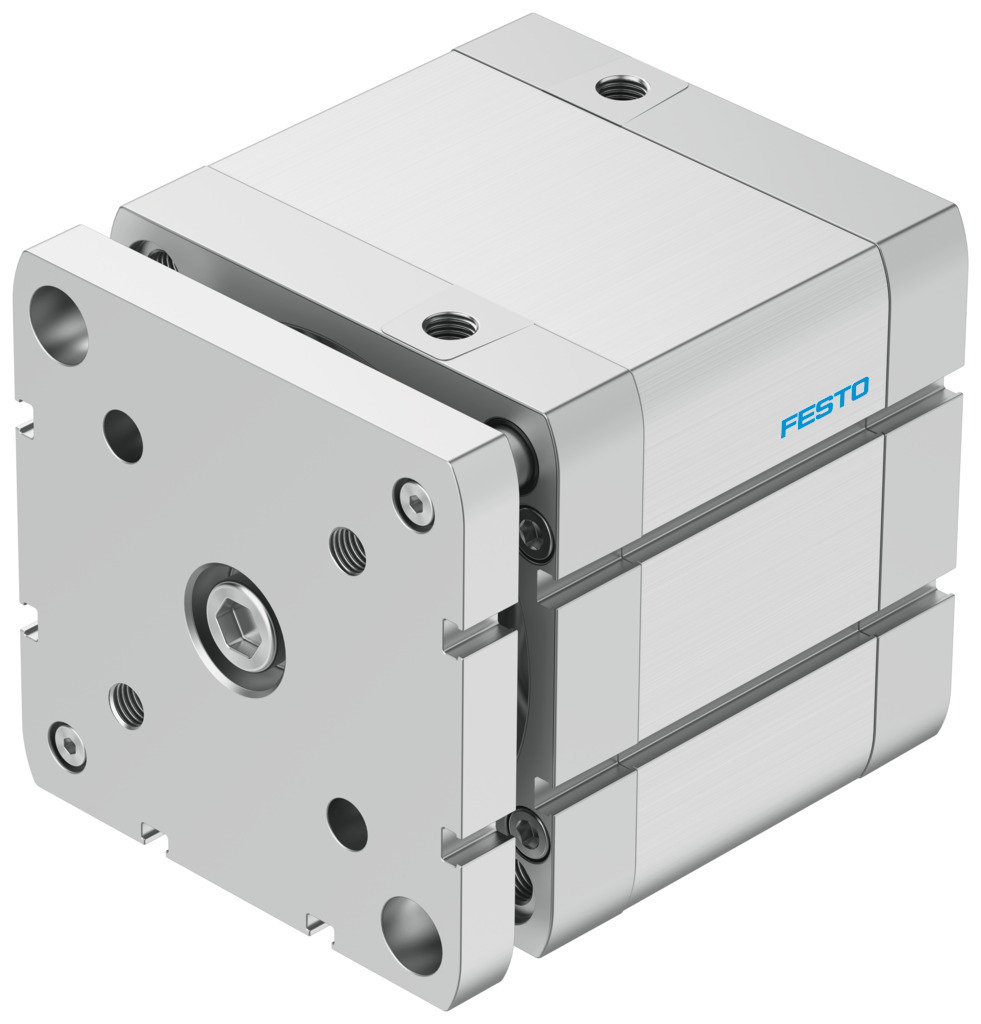

Festo ADNGF-100-40-P-A Compact cylinder

Festo ADNGF-100-40-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 40 mm; piston diameter 100 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

554291

Type code

ADNGF-100-40-P-A

EAN / GTIN

4052568199166

Product category

Compact pneumatic cylinders, short-stroke and flat cylinders

Stroke

40 mm

Piston diameter

100 mm

Based on standard

ISO 21287

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Design

Piston, Piston rod, Profile barrel

Position detection

Via proximity switch

Protection against torque/guide

Guide rod with yoke

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

2.5 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

4524 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

4712 N

Moving mass

1236 g

Product weight

2669 g

Pneumatic connection

G1/8

Material collar screws

Steel

Material cover

Coated die-cast aluminium

Material seals

TPE-U(PUR)

Material end plate

Anodised wrought aluminium alloy

Material piston rod

High-alloy steel

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

G1/8

Carbon footprint (EPD)

53.2917 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
