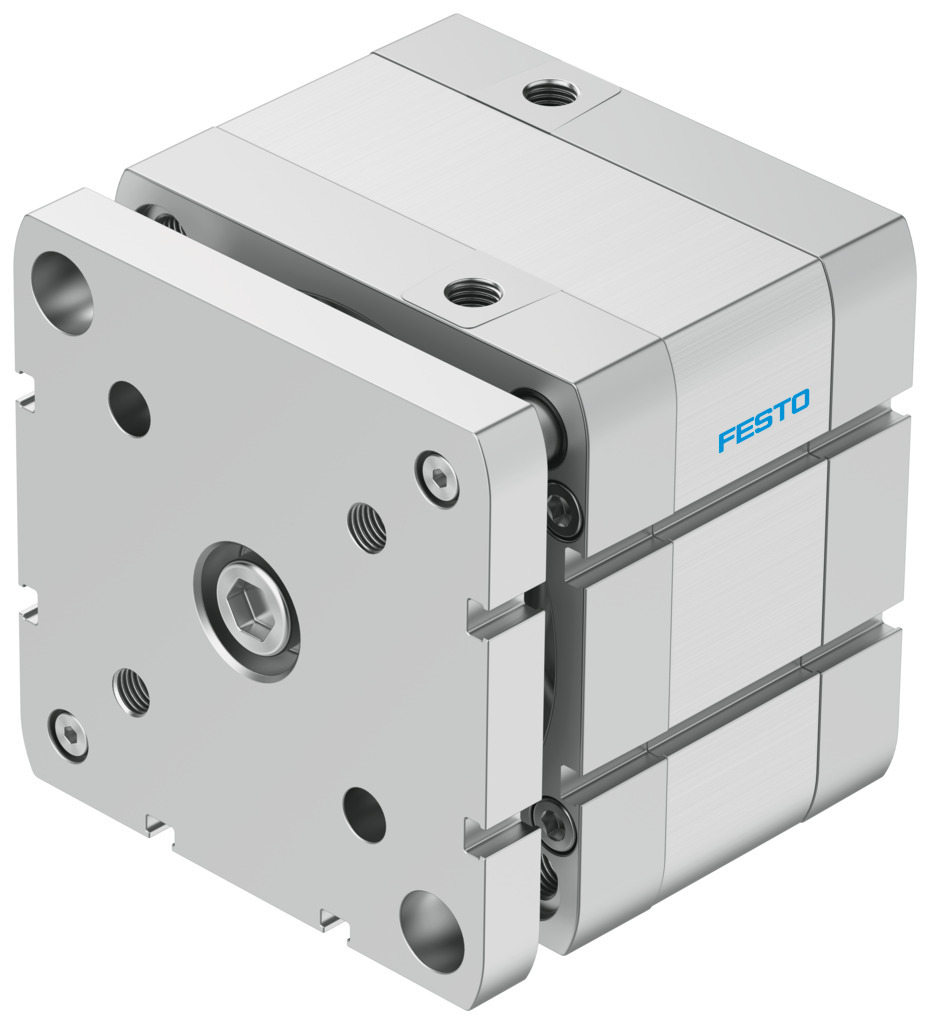

Festo ADNGF Compact cylinder - 100mm, G1/8, 15mm, ADNGF-100-15-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 100 mm, port size G1/8, stroke rate 15 mm, supplier type designation ADNGF-100-15-P-A. Supplied under manufacturer part number 554287, EAN 4052568199128, HS code 8412.31, country of origin Hungary.
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 100 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 2.5 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 4524 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 4712 N
- Moving mass
- 1130 g
- Product weight
- 2379 g
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Coated die-cast aluminium
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568199128
- Festo type code
- ADNGF-100-15-P-A
- Festo order number
- 554287
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 46.9049 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 554287
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568199128
- MPN 554287
Product Documentation
More from Festo
Festo
Festo DGSL Mini Slide - M5, DGSL-10-40-PA
543945
Festo
Festo AEVUZ Compact cylinder - 100mm, G1/4, 10mm, AEVUZ-100-10-A-P-A
157294
Festo
Festo VUVG-L18 Solenoid Valve - G1/4", El, Spring, VUVG-L18-T32U-MZT-G14-1P3
574435
Festo
Festo LFMB Fine filter Midi manual - 1MY, LFMB-D-MIDI
192570
Festo
Festo CPE24 Solenoid Valve - QS-10", El, Spring, CPE24-M2H-3OL-QS-10
4052568135720
Festo
Festo DGSL Mini Slide - M5, DGSL-12-10-PA
543961
Festo
Festo NPFC-D Double Nipple brass, nickel-plated metric - 3mm, NPFC-D-2M3-M
8069210
Festo
Festo MUC Profile fastening - 18, MUC-18
531752
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 554287?
- 554287 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 554287.
- What is the HS code for 554287?
- The customs tariff (HS) code for 554287 is 8412.31.
- Who manufactures 554287?
- 554287 is a Festo product in the Pneumatics range.
- Is a datasheet available for 554287?
- Yes — the 554287 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 554287?
- The minimum order quantity is 1.
- Is 554287 available?
- Yes — 554287 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
