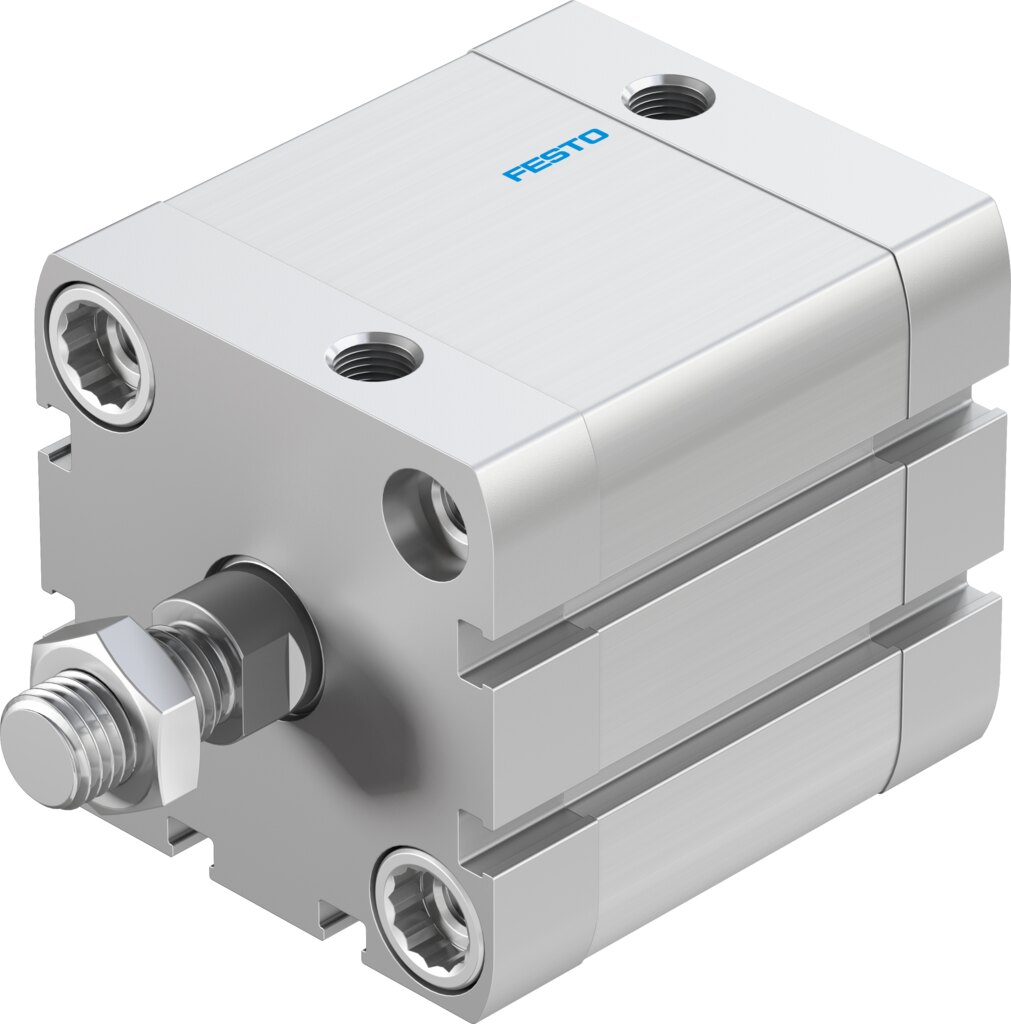

Festo ADN-50-30-A-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN-50-30-A-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 30 mm; piston diameter 50 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 572695
- Type code
- ADN-50-30-A-PPS-A
- EAN / GTIN
- 4052568219161
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 30 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Male thread
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 2.8 J
- Cushioning length
- 6 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 1057 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1178 N
- Moving mass
- 228 g
- Product weight
- 701 g
- Type of mounting
- With through-hole, with female thread, with accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 8.4427 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568219161
- MPN 572695
