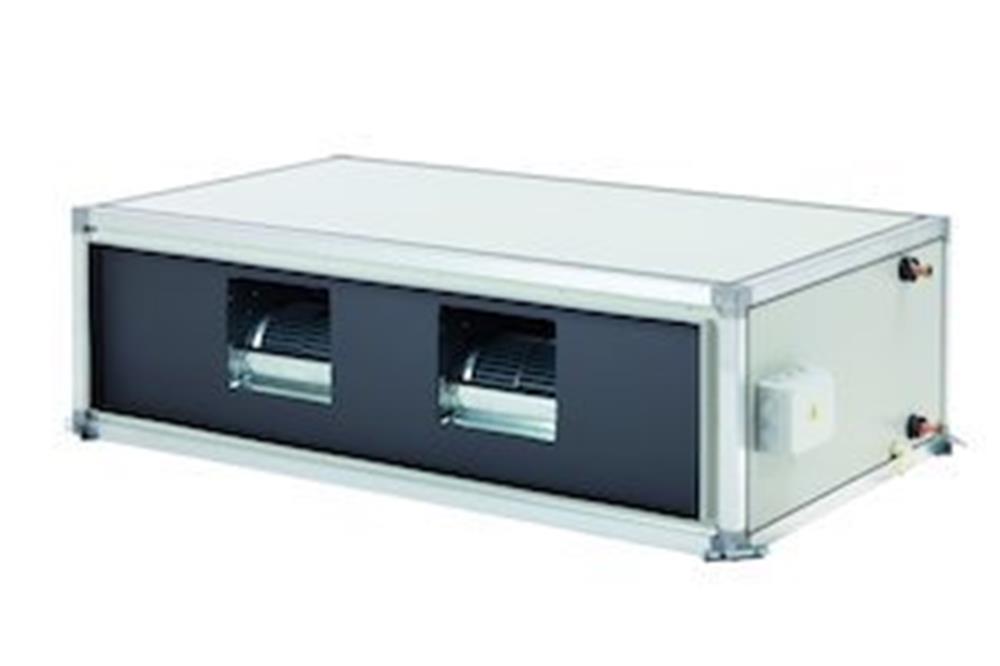

Eurapo EDS 060 high-pressure ducted fan coil, without plenum, EC inverter motor, 4-row coil, 2-way on/off valve, 23.8 kW cooling, 65 dB(A), 4769 m³/h, ESTEDS060-4R+OPT V2 2W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo EDS 060, a high-pressure ducted fan coil from the EST inverter range: double-skin ducted unit, horizontal installation. As ordered it carries a 4-row water coil; an EC brushless motor with built-in inverter; an ON/OFF 2-way regulating valve (_2xx / J2xx, 230 V thermoelectric actuator); the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system. Rated performance for this configuration: cooling capacity 23.8 kW, air flow 4769 m³/h, sound power level 65 dB(A), water connections 1 x 1". The EDS is a double-skin, two-pipe ducted unit built from 25 mm insulated panels on an aluminium frame and rated for up to 300 Pa external static pressure. Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTEDS 060-4R+AS+ORBT.10+J2C2. Supplied under manufacturer part number ESTEDS060-4R+OPT V2 2W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- Fan coil duct model
- Product group
- Water cooling system
- Cooling capacity
- 23.8 kW
- Sound performance level
- 65 to 65 dB(A)
- Airflow
- 4769 to 4769 m³/h
- Type designation
- ESTEDS 060-4R+AS+ORBT.10+J2C2
- Pipe connection
- 1 x 1"
- Height
- 550 mm
- Width
- 1777 mm
- Depth
- 1030 mm
- Carbon footprint (EPD)
- 901.9241 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTEDS060-4R+OPT V2 2W
