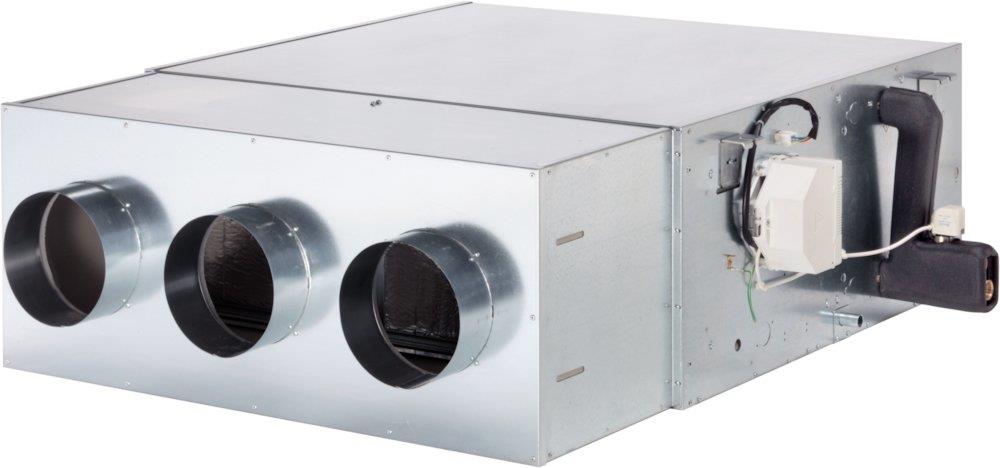

Eurapo EBH 040 high-pressure ducted fan coil, without plenum, EC inverter motor, 4-row coil, no valve fitted, 14.4 kW cooling, 18 kW heating, 56 dB(A), 3772 m³/h, ESTEBH040-4R+OPT V2 0W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo EBH 040, a high-pressure ducted fan coil from the EST inverter range: ducted unit, horizontal installation. As ordered it carries a 4-row water coil; an EC brushless motor with built-in inverter; no regulating valve — the unit is supplied for an external valve or for constant-flow operation; the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system. Rated performance for this configuration: cooling capacity 14.4 kW, heating capacity 18 kW, air flow 3772 m³/h, sound power level 56 dB(A), water connections 1/2 x 1/2". The EBH is a high-pressure ducted unit rated for up to 300 Pa external static pressure, for horizontal installation above a false ceiling or in a plant space. Maximum operating pressure is 16 bar without valves fitted. Full type designation ESTEBH 040-4R+AS+ORBT.10. Supplied under manufacturer part number ESTEBH040-4R+OPT V2 0W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- Fan coil duct model
- Product group
- Water cooling system
- Cooling capacity
- 14.4 kW
- Heating capacity
- 18 kW
- Sound performance level
- 56 to 56 dB(A)
- Airflow
- 3772 to 3772 m³/h
- Type designation
- ESTEBH 040-4R+AS+ORBT.10
- Pipe connection
- 1/2 x 1/2"
- Height
- 408 mm
- Width
- 1240 mm
- Depth
- 902 mm
- Carbon footprint (EPD)
- 603.8305 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTEBH040-4R+OPT V2 0W
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTEBH040-4R+OPT V2 0W
Product Documentation
