Esylux
ALVA BL OF 540 16W 4K CLE On/Off
Part numberEL10820328EAN / GTIN4015120820328HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

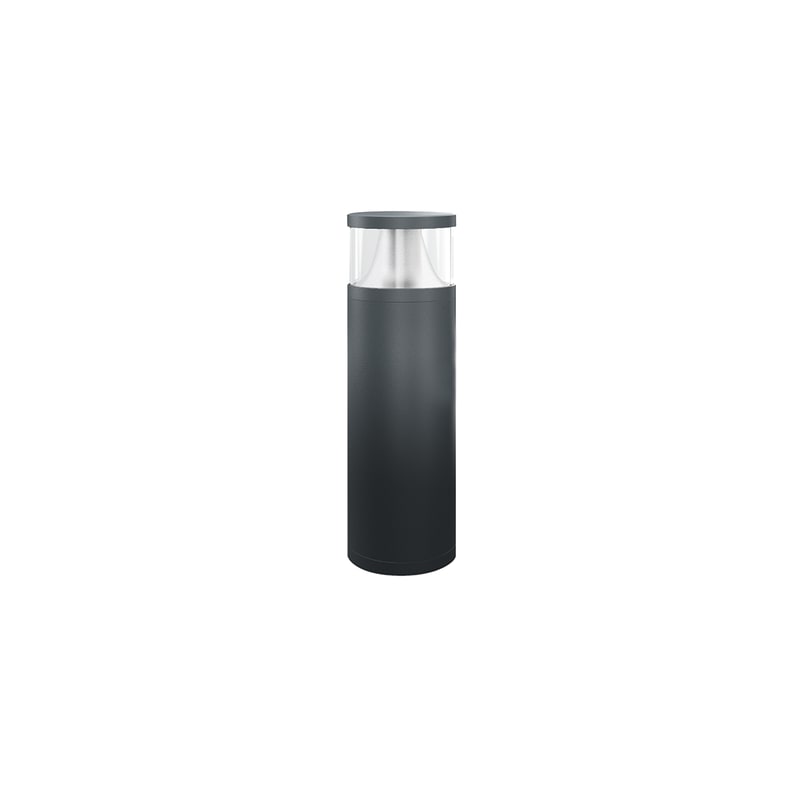

Esylux EL10820328 BOLLARD ALVA 360° 540 / 170 16 W 4000 K ANTHRACITE CLEAR ON/OFF.
Technical Specifications
- Manufacturer part number (MPN)
- EL10820328
- EAN / GTIN
- 4015120820328
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 16 W
- Protection class according to IEC 61140
- I
- Height
- 540 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 15 W
- Suitable for lamp power
- 14.3 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 170 mm
- With light sensor
- No
- Number of poles
- 3
- Height/depth
- 540 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, transparent
- Impact strength
- IK10
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- > 80° - Extreme wide beam
- Nominal current
- 64–77 mA
- Max. system power
- 16 W
- Rated luminous flux according to IEC 62722-2-1
- 1350 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 110000 h
- Rated life time L80/B10 at 25 °C
- 65000 h
- Rated life time L90/B10 at 25 °C
- 35000 h
- LED nominal current at constant current
- 340 mA
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 84 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- E
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- Yes
- Containing product according to 2019/2020/EU
- Yes
- Device emplacement
- Outdoor positioning
- Power factor
- 0.917
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4015120820328
- SAP 1200139369
- Code 82035538
Product Documentation
Document preview: ALVA BL OF 540 16W 4K CLE On/Off (EL10820328) — Specification sheet
