Esylux SLX 32 LEDi Emergency Escape Sign 8 h White
Pricing
Request a quote
We reply within 24 hours
Product Description

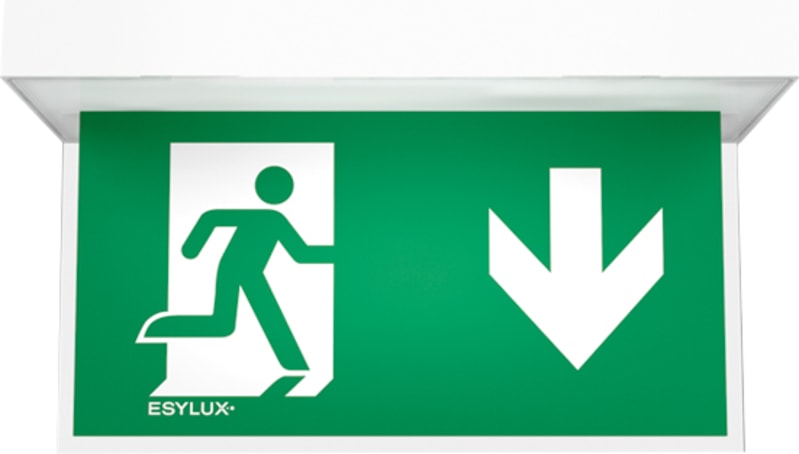

Esylux SLX 32 LEDi self-testing emergency luminaire for escape-route signage with an 8-hour autonomy and 32 metre recognition distance. The single-sided LED sign operates at 230 V AC, IP20, protection class II, and mounts to walls or ceilings surface or recessed. Fitted with a NiCd battery, automatic self-test and 35 lm emergency luminous flux at 4000 K.
Technical Specifications
- Manufacturer part number (MPN)
- EN10077319
- EAN / GTIN
- 4015120077319
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Suitable for continuous circuit
- Yes
- Suitable for standby switching
- Yes
- Mounting method
- Surface mounting/recessed mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Acrylic plate
- Type of indicator
- Single-sided
- Lamp power
- 1.82 W
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- No
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiCd
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 230 V
- Autonomy
- 3 h
- Type of control gear
- LED operating device current-controlled
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Built-in depth
- 66 mm
- Luminous flux in emergency mode
- 35 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 5–35 °C
- Max. system power
- 3 W
- Colour temperature
- 4000 K
- Recognition distance
- 32 m
- Nominal operation time
- 8 h
- Width
- 148 mm
- Height/depth
- 223 mm
- Length
- 388 mm
- Built-in width
- 155 mm
- Built-in height/depth
- 66 mm
- Built-in length
- 430 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Connectable conductor cross section
- 1.5–2.5 mm²
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Germany
