Esylux

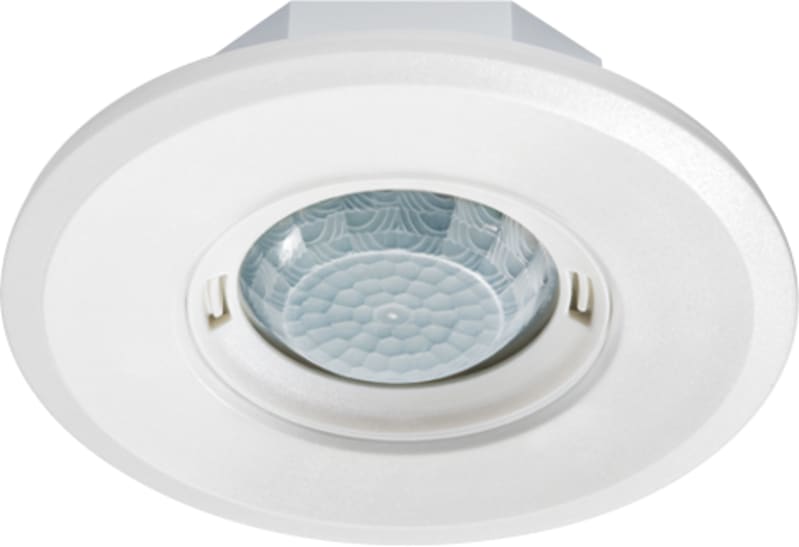

PD-FLAT 360I/8 round hv DALI
Part numberEP10427541EAN / GTIN4015120427541HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EP10427541 Tilst. detector, DALI, range approx. 8 m in Ø, 1 channel, switch/dim, recessed mounting, round, white.
Technical Specifications
- Manufacturer part number (MPN)
- EP10427541
- EAN / GTIN
- 4015120427541
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Background monitoring
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Suitable for ceiling mounting
- Yes
- Compatible with Casambi
- No
- With acoustic sensor
- No
- With connection cable
- No
- Voltage supply over bus
- No
- Suitable for wall mounting
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9010
- Transparent
- No
- With bus connection
- No
- Substation input
- Yes
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- No
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- Yes
- Switch-off delay self-learning
- No
- DALI-2 certified
- No
- Optimum mounting height
- 2.5 m
- Max. reach sideways
- 4 m
- Max. reach frontally
- 3 m
- Diameter reach on floor
- 8 m
- Detection angle vertical
- 58–116 °
- Detection angle horizontal
- 180–360 °
- Number of channels
- 3
- Switching power
- 2300 W
- Min. switch-on time
- 60 s
- Max. duty cycle
- 240 min
- Min. depth of built-in installation box
- 24 mm
- Height
- 30 mm
- Built-in depth
- 24 mm
- Diameter
- 94 mm
- Built-in diameter
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015120427541
- SAP 1000721572
- Code 8449427
Product Documentation
Document preview: PD-FLAT 360I/8 round hv DALI (EP10427541) — Specification sheet
