Esylux
MD 180I/16 Basic Set SKK
Part numberEB10430626EAN / GTIN4015120430626HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

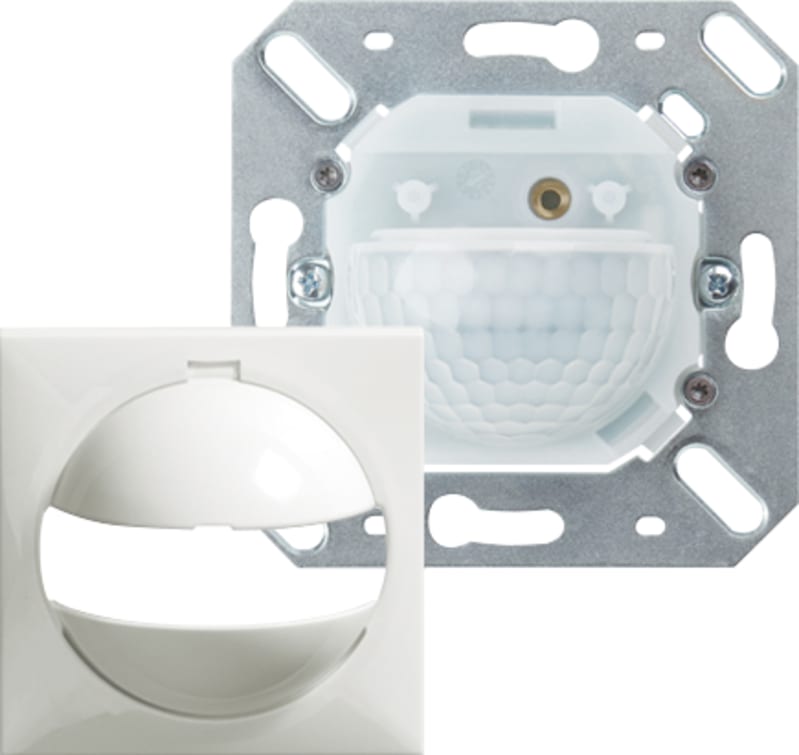

Esylux EB10430626 wall-mounted motion detector, 180°, with pushbutton connection, remote-controllable.
Technical Specifications
- Manufacturer part number (MPN)
- EB10430626
- EAN / GTIN
- 4015120430626
- Sales unit
- pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 70 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 55 mm
- Depth
- 70 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switching-on delay
- 30 s
- Switch-off delay
- 300 s
- Built-in depth
- 23 mm
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- Yes
- Built-in width
- 42 mm
- Built-in diameter
- 60 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 6 m
- Max. reach sideways
- 8 m
- Max. switching power
- 2300 W
- Temperature
- 0-50 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Ambient temperature
- -25-50 °C
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5-2000 lx
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015120430626
- SAP 1200073827
- Code 81921247
Product Documentation
Document preview: MD 180I/16 Basic Set SKK (EB10430626) — Specification sheet
