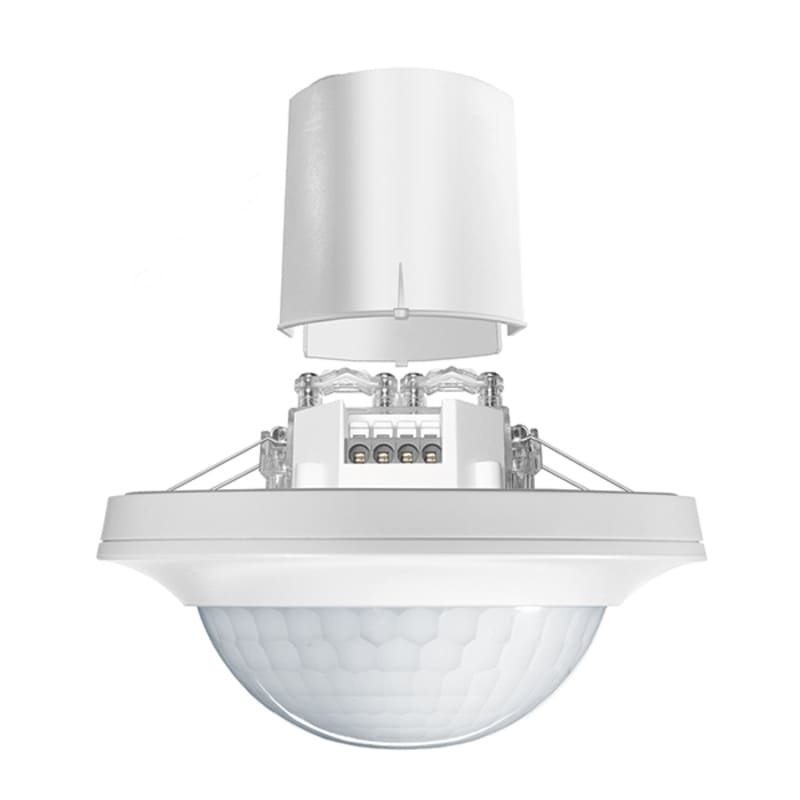

Esylux PD-C 360/24 Slave FM Flush-Mount Presence Detector EP10428777
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux PD-C 360/24 Slave FM slave presence detector for extending the detection area of a master unit. 360 degree field of view with a frontal reach of 5.5 m, side reach of 12 m and a floor coverage diameter of 24 m. Flush-mounted white housing, 108 mm diameter, with push-in terminals for 230 V AC wiring.
Technical Specifications
- Manufacturer part number (MPN)
- EP10428777
- EAN / GTIN
- 4015120428777
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Presence detector
- Halogen free
- No
- Height
- 108 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Built-in depth
- 90 mm
- With remote control
- No
- Diameter
- 108 mm
- Suitable for wall mounting
- No
- Built-in diameter
- 68 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 5.5 m
- Max. reach sideways
- 12 m
- Material
- Plastic
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Suitable for C-load
- No
- Diameter reach on floor
- 24 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- RAL-number (similar)
- 9010
- With signal unit
- Yes
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120428777
- SAP 1200647099
- Code 83065730
Product Documentation
More from Esylux
Esylux
ALVA Post-Top Light 700 TR 830 MD IR DALI
EL10821172
Esylux

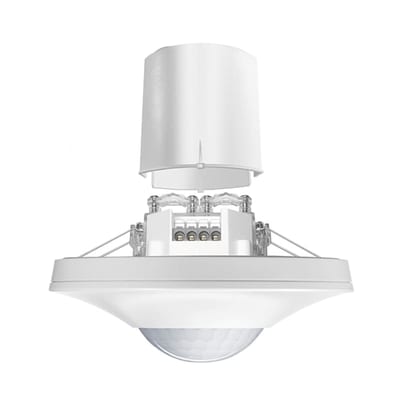

PD-C 360I/8 FM DUO DALI
EP10428784
Esylux

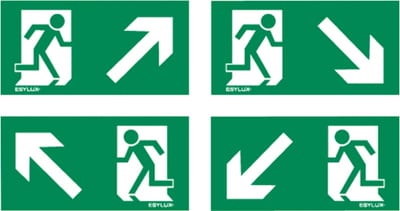

SLE Pictogram set 2 (reserve)
EN10060670
Esylux

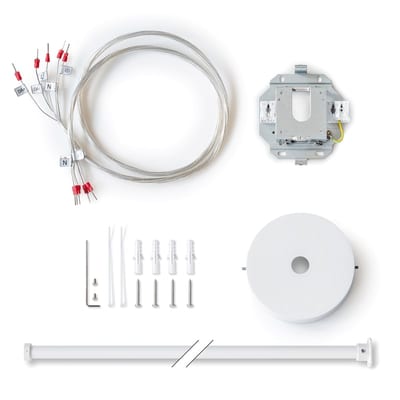

Svenja POLE Pendulum SET 1000
EO10850561
Esylux

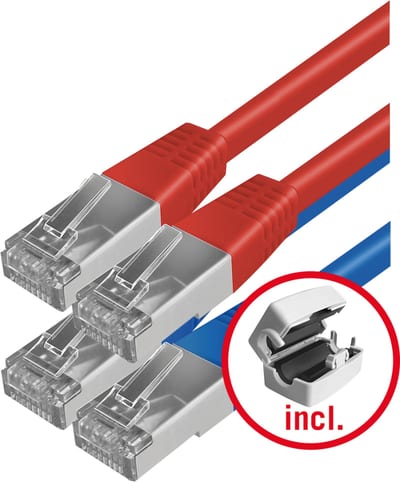

Cable Set RJ45 5M TW X8
EC10431982
Esylux

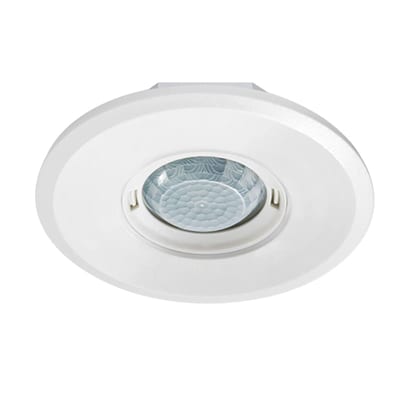

PD-Flat-L 360I/8 RW (EP10428623)
Esylux

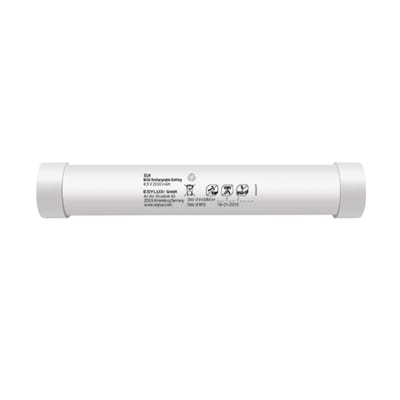

Battery for ELH-series, 2000 mAh
