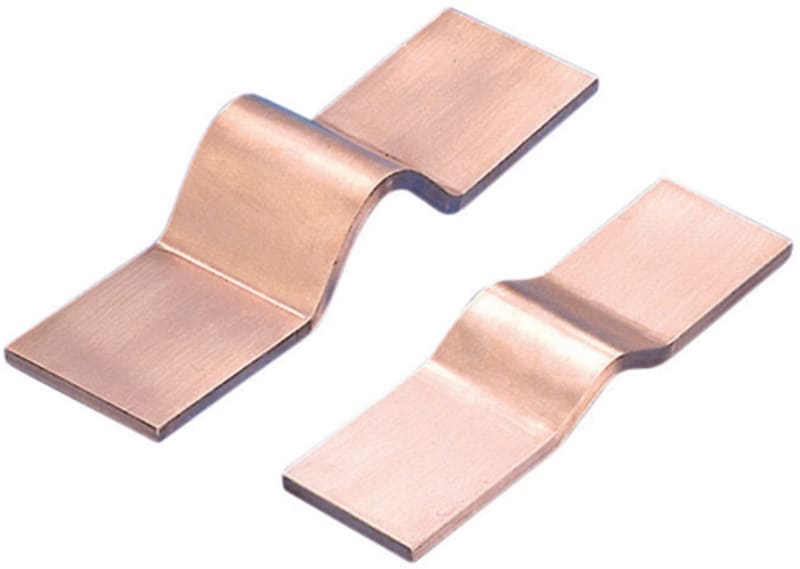

nVent ERIFLEX 566070 PPS Presswelded Power Shunt, 2,960.28 kcmil, 14.2"
Pricing
Request a quote
We reply within 24 hours
Product Description
Thin press welded laminations are welded to each other through direct current applied under pressure, resulting in PPS power shunt. Welding forms a solid palm with the properties of a plain bar.
Technical Specifications
- Manufacturer part number (MPN)
- 566070
- EAN / GTIN
- 3479775660707
- Sales unit
- pcs
- Material
- Copper
- Finish
- Plain
- Lamination Thickness
- 0.01" / 0.3mm
- Cross Section
- 2960.28kcmil / 1500mm²
- ∆T 30 K
- 2178A
- ∆T 50 K
- 2886A
- Length (L)
- 14.2" / 360mm
- Height (H)
- 2.24" / 57 mm
- A
- 4.33" / 110 mm
- B
- 3.94" / 100 mm
- C
- 0.59" / 15 mm
- Unit Weight
- 11.87 lb / 5.38 kg
- 2 Bar Current Coefficient
- 1.6
- UPC
- 782856878452
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Width
- 110 mm
- Flexible
- No
- Surface protection
- Tinned
- Country of origin
- France
Standards & Compliance
- HS Code
- 7413.00
Cross References
- EAN 3479775660707
- SAP 1200008241
- Code 8533055
