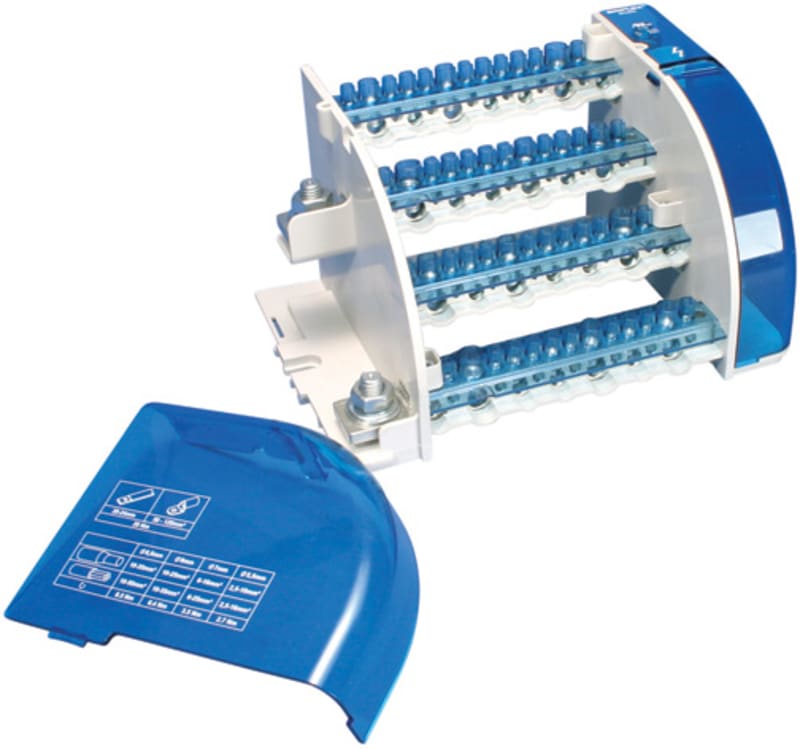

nVent ERIFLEX 563995 Four Pole Distribution Block, 400 A, 1 Line Side & 14 Load Side Connections

Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space.

Manufacturer part number (MPN)

563995 EAN / GTIN: 8711893059847 Sales unit: pcs Rated current: 250 A material: Copper;Thermoplastic Finish: Tinned Max Current Rating, IEC: 400A Max Current Rating, UL/CSA: 400A Short Term Withstand Current (Icw) 1s: 23kA Peak Short Circuit Current (Ipk): 51kA Max Working Voltage, IEC (Ui): 1000;1500 Max Working Voltage, UL (Vin): 600 Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 35 - 120 mm² Line Side Conductor Width: 20 - 24 mm Line Side Stranded Wire Size - Ferrule: 35 - 120 mm² Line Side Wire Size: 1 - 250 Load Side Number of Connections: 14 Load Side Compact Stranded Wire Size: (1) 10 - 50 mm²;(2) 10 - 35 mm²;(4) 6 - 25 mm²;(7) 2,5 - 16 mm² Load Side Stranded Wire Size - Ferrule: (1) 10 - 35 mm²;(2) 10 – 25 mm²;(4) 6 - 16 mm²;(7) 2,5 - 10 mm² Load Side Wire Size: (1) #6 – 1/0;(2) #8 - #1;(4) #10 - #3;(7) #10 - #5 Depth (D): 4 3/4" / 121mm Height (H): 6.14" / 156 mm Width (W): 8.82" / 224 mm Unit Weight: 3.73 lb / 1.69 kg Enclosure Rating: IP 10 Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856630999 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 4 Conductor cross section solid (solid, stranded): 2.5–50 mm² Max. rated current: 400 A With N-rail: No With PE-rail: No Country of origin: France

HS Code

8536.90

• EAN 8711893059847
• SAP 1000743442
• Code 8420559
