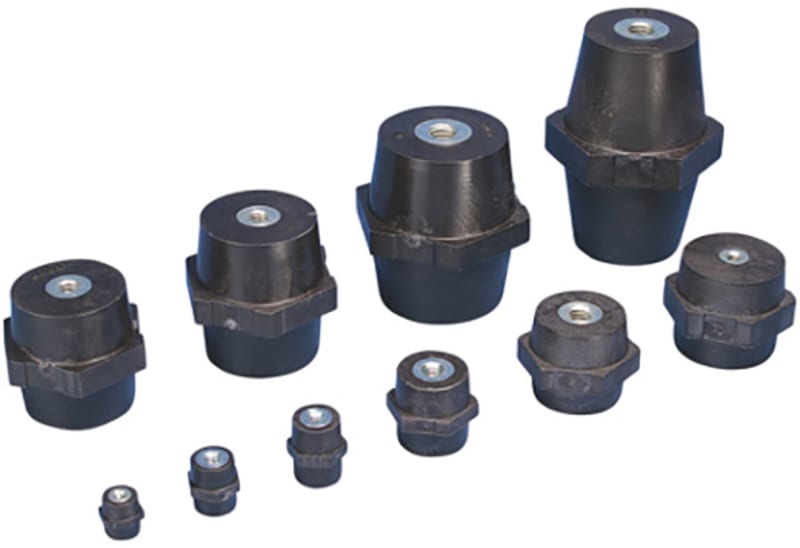

nVent ERIFLEX 548690 Low Voltage Insulators, Metric Thread, 3.937", 65 mm Hex Width, M16 Thread
Pricing
Request a quote
We reply within 24 hours
Product Description
Low voltage electrical insulator.
Technical Specifications
- Manufacturer part number (MPN)
- 548690
- EAN / GTIN
- 3479775486901
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Material
- Steel;Glass Fibre Reinforced Polyamide
- Finish
- Electrogalvanized
- Working Temperature
- -40 to 266 °F / -40 to 130 °C
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60695-2-11 (Glow Wire Test 960 °C)
- Dielectric Strength, IEC 61439.1
- 3500 VAC @ 1 min
- Dielectric Strength, UL
- 1500
- Insulation Voltage
- 1000;1500
- Height (H)
- 3.94" / 100 mm
- Hex Width (W)
- 65 mm
- Depth (D)
- 2.95" / 75mm
- Thread Size (TS)
- M16
- Thread Depth (TD)
- 0.79" / 20mm
- Diameter (Ø)
- 1.81" / 46 mm
- Static Load 1 (F1)
- 6744lb / 3000daN
- Static Load 2 (F2)
- 3372lb / 1500daN
- Unit Weight
- 1.12 lb / 0.51 kg
- UPC
- 782856875635
- Standard Packaging Quantity
- 10
- Packing Quantity
- 1
- Outer diameter
- 46 mm
- Length
- 100 mm
- Bolt dimension (metric)
- 16
- Country of origin
- France
Standards & Compliance
- HS Code
- 8546.90
Cross References
- EAN 3479775486901
- SAP 1000767109
- Code 8560124
Product Documentation
