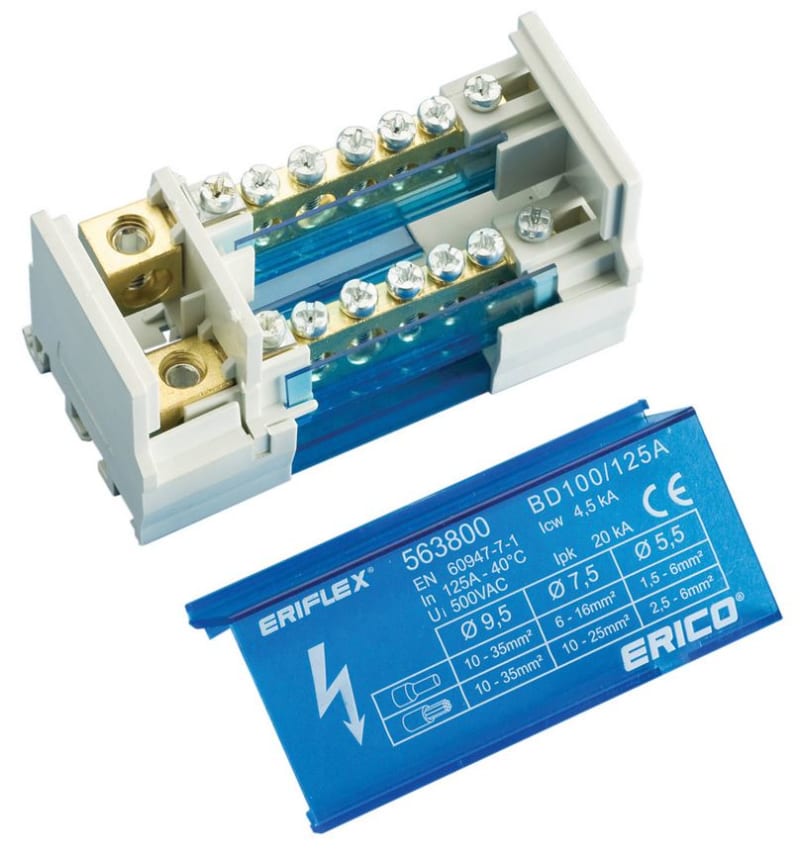

nVent ERIFLEX BD100125AL Two Pole Distribution Block, 100/125 A, 1 Line Side & 14 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 2-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- BD100125AL EAN / GTIN: 3479775638102 Sales unit: pcs Article Number: 563810 Max Current Rating, IEC: 125A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 25kA Max Working Voltage, IEC (Ui): 690V Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 10 - 35 mm² Line Side Stranded Wire Size - Ferrule: 10 - 35 mm² Load Side Number of Connections: 14 Load Side Compact Stranded Wire Size: (11) 2,5 - 6 mm²;(3) 10 - 25 mm² Load Side Stranded Wire Size - Ferrule: (11) 1,5 – 6 mm²;(3) 6 – 16 mm² Depth (D): 1.97" / 50mm Height (H): 1.97" / 50 mm Width (W): 6.38" / 162 mm Unit Weight: 0.6 lb / 0.27 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856878124 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 2 Max. rated current: 125 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775638102
- SAP 1000264502
- Code 81148130
Product Documentation
