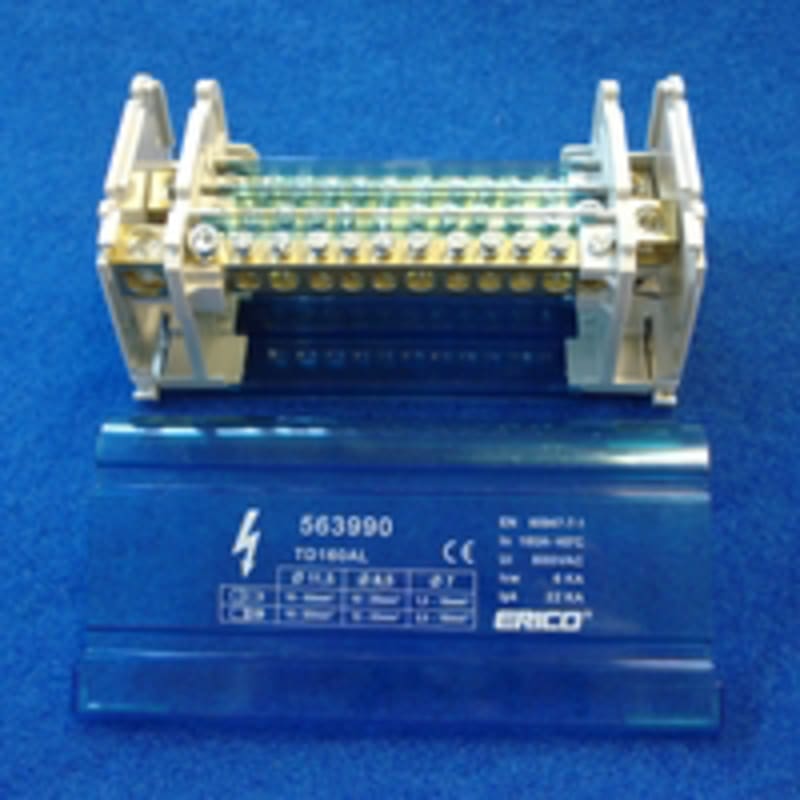

nVent ERIFLEX TD160AL Four Pole Distr. Block, 160 A, 1 Line Side & 11 Load Side Connections, 2.76" Dp
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- TD160AL EAN / GTIN: 3479775639901 Sales unit: pcs Article Number: 563990 material: Thermoplastic;Brass Max Current Rating, IEC: 160A Short Term Withstand Current (Icw) 1s: 8.2kA Peak Short Circuit Current (Ipk): 35kA Max Working Voltage, IEC (Ui): 690V Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 10 - 50 mm² Line Side Stranded Wire Size - Ferrule: 10 - 50 mm² Load Side Number of Connections: 11 Load Side Compact Stranded Wire Size: (8) 2,5 - 16 mm²;(3) 10 - 35 mm² Load Side Stranded Wire Size - Ferrule: (8) 1,5 – 16 mm²;(3) 10 – 25 mm² Depth (D): 2.76" / 70mm Height (H): 3.54" / 90 mm Width (W): 6.69" / 170 mm Unit Weight: 1.63 lb / 0.74 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856626916 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 4 Conductor cross section solid (solid, stranded): 2.5–35 mm² Max. rated current: 160 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775639901
- SAP 1000264415
- Code 81148111
