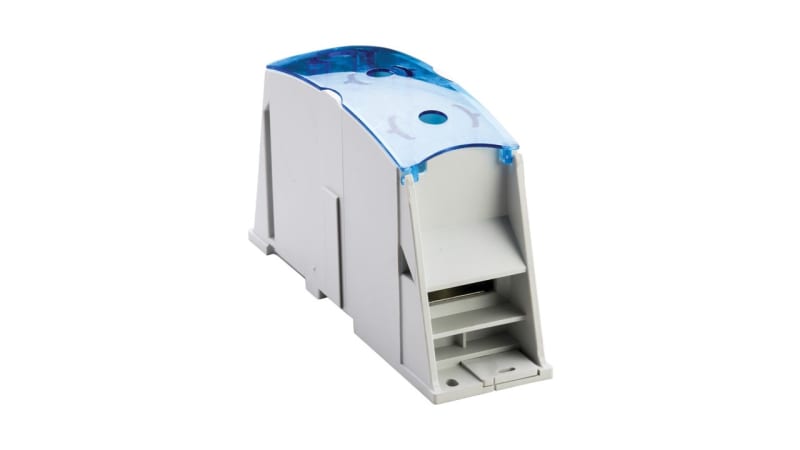

nVent ERIFLEX SBF2C630AL Splice Block, FLEXIBAR-2 Cables, 760 A UL, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- SBF2C630AL
- EAN / GTIN
- 0782856940067
- Sales unit
- pcs
- Rated current
- 800 A
- Article Number
- 561173
- Finish
- Tinned
- Type
- Flexibar-2 Cables
- Typical Application Current Rating, IEC
- 800 A
- Typical Application Current Rating, UL
- 760 A
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 240 mm²
- Line Side Max Conductor Size, UL
- 240 mm²
- Load Side Max Conductor Size, IEC
- 240 mm²
- Load Side Max Conductor Size, UL
- 500 kcmil
- Short Term Withstand Current (Icw) 1s
- 60kA
- Max Current Rating, Insulated Power Braid, IEC
- 910A
- Max Current Rating, nVent ERIFLEX Flexibar, IEC
- 930A
- Max Current Rating, UL/CSA
- 760A
- Peak Short Circuit Current (Ipk)
- 52kA
- Rated Conditional Short-Circuit Current (Icc)
- 24.8kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Line Side Number of Connections
- 1
- Line Side Insulated Power Braid Cross Section
- 240mm²
- Line Side nVent ERIFLEX Flexibar Size
- 2x20x1 - 8x32x1
- Line Side DLO Wire Size
- #2 - 262 kcmil
- Load Side Compact Stranded Wire Size
- (2) 35 - 240 mm²
- Load Side Number of Connections
- 2
- Load Side Stranded Wire Size - Ferrule
- (2) 35 - 240 mm²
- Load Side Wire Size
- (2) #2 - 500 kcmil
- Depth (D)
- 4.03" / 103mm
- Height (H)
- 7 1/2" / 191 mm
- Width (W)
- 2.1" / 54 mm
- Unit Weight
- 1.5 lb / 0.68 kg
- Certification Details
- UL® 1953
- Complies With
- IEC® 60947-7-1
- Enclosure Rating
- IP 20
- Flammability Rating
- UL® 94V-0
- UPC
- 782856940067
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 2
- Conductor cross section solid (solid, stranded)
- 35–240 mm²
- Max. rated current
- 930 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856940067
- SAP 1200413716
- Code 82455884
Product Documentation
