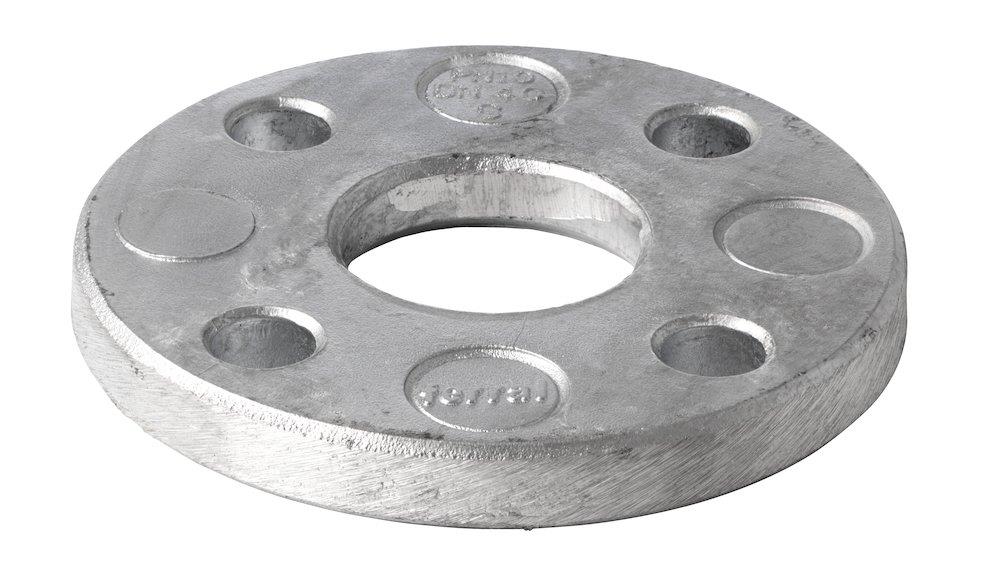

EN 1092-1 Type 02 Loose flange galvanized - 60.3mm, 165mm, 50, 4PCS
Pricing
Request a quote
We reply within 24 hours
Product Description
EN 1092-1 Type 02 Loose flange galvanised. Galvanized loose flanges ISO (Plumbing / Pipes and fittings / Flanges and gaskets). Principal data: outer pipe dimension 60.3 mm, flange diameter 165 mm, dn dimension 50, number of bolt holes 4 pcs. Supplied under manufacturer part number GL11685115, HS code 7307.91, country of origin India.
Technical Specifications
- Product type
- Galvanized loose flanges ISO
- Product group
- Pipes and fittings
- Outer pipe dimension
- 60.3 mm
- Flange diameter
- 165 mm
- DN dimension
- 50
- Number of bolt holes
- 4 pcs
- Material
- S235 JRG2
- Bolt hole diameter
- 18 mm
- Pressure PN
- 40 bar
- Flange thickness
- 20 mm
- Bolt dimension
- 16 mm
- Bolt circle diameter
- 125 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0072 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73079100
- HS code
- 7307.91
- Manufacturer part number
- GL11685115
- VVS number
- 000653060
Standards & Compliance
- HS Code
- 7307.91
Cross References
- MPN GL11685115
More from Generic
Generic
3-piece Ball Valve 316/316/PTFE welded/welded - 1.1/2", 63bar
VB55654505
Generic
Weld flange with collar stainless - 1 1/4", 600LBS, 80S, 42,2mm
FW20034180
Generic
PH Block angle steel acid-resistant BSPP nipple/nipple - 1/8", 1/8", 90°
1350510-02
Generic
DIN 912 Allen Screw cylindrical acid-resistant A4 - M3, 16mm, 500PCS, 16mm
912030166
Generic
DIN 912 Socket Cap Screw, Cylindrical Head, Electro-galvanised - M10, 22 mm, 200 pcs
88912100222
Generic
Ball Valve coupling/coupling - Normal, L-handle, acid-resistant, 1", 1"
VB45653590
Generic
O-ring EPDM - 158.35mm, Shore 70, 3,53mm
373317
Generic
DIN 931 Hex Bolt, Untreated, Grade 10.9 - M14, 80 mm, 50 pcs
10931140801
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GL11685115?
- GL11685115 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is GL11685115.
- What is the HS code for GL11685115?
- The customs tariff (HS) code for GL11685115 is 7307.91.
- Is a datasheet available for GL11685115?
- Yes — the GL11685115 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GL11685115?
- The minimum order quantity is 1.
- Is GL11685115 available?
- Yes — GL11685115 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for GL11685115?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
