Product Description

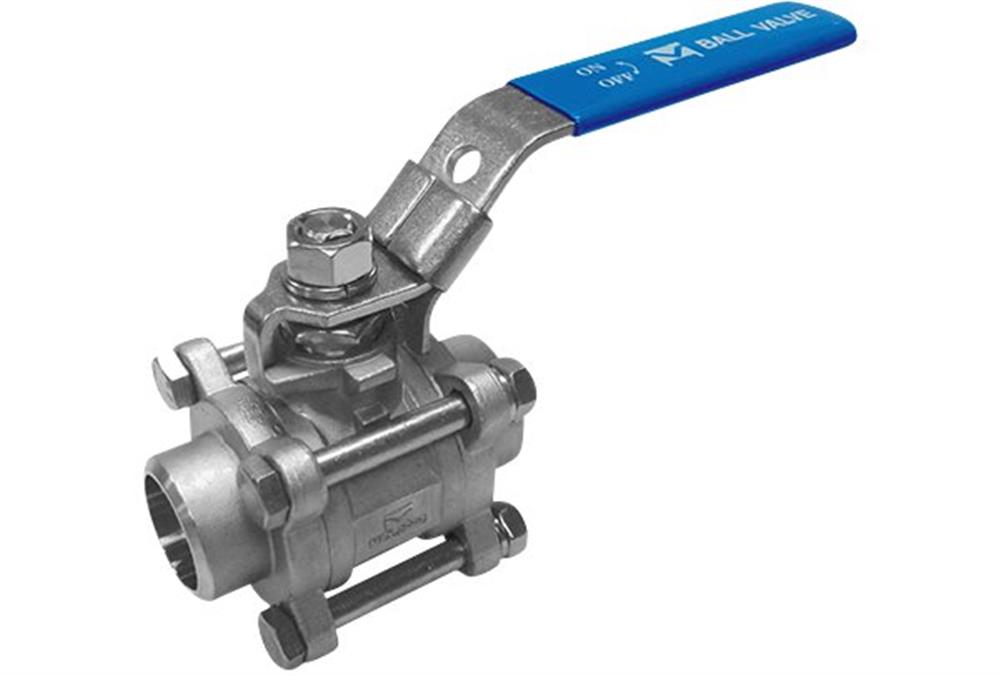

3-piece Ball Valve 316/316/PTFE welded/welded. Ball valves for welding (Technique / Industrial valves / Ball valves). Principal data: dimension 1.1/2", pressure pn 63 bar. Supplied under manufacturer part number VB55654505, HS code 8481.80, country of origin Netherlands.
Technical Specifications
- Product type
- Ball valves for welding Product group: Industrial valves Dimension: 1.1/2" Pressure PN: 63 bar Temperature max: 180 °C Temperature min: -20 °C Length built-in dimension: 120 mm DN dimension: 40 House: 316 acid-resistant Ball / spindel: 316 acid-resistant Liner / packing: PTFE Passage: Full bore W dimension: 190 mm H dimension: 100 mm C dimension: 10 mm D dimension: 49.3 mm D dimension: 38 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0064 kg CO2e per pcs Environmental declaration: LCA Country of origin: Netherlands Customs tariff code (EU CN): 84818081 HS code: 8481.80 Manufacturer part number: VB55654505
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN VB55654505
Product Documentation
